Dubbo分析之Registry层 原 荐

前言

紧接上文Dubbo分析之Cluster层，本文继续分析dubbo的register层；此层封装服务地址的注册与发现，以服务URL为中心，扩展接口为RegistryFactory, Registry, RegistryService；

Registry接口

接口定义如下：

public interface Registry extends Node, RegistryService {
}

public interface RegistryService {

    void register(URL url);

    void unregister(URL url);

    void subscribe(URL url, NotifyListener listener);

    void unsubscribe(URL url, NotifyListener listener);

    List<URL> lookup(URL url);

}

主要提供了注册(register)，注销(unregister)，订阅(subscribe)，退订(unsubscribe)等功能；dubbo提供了多种注册方式分别是：Multicast ，Zookeeper，Redis以及Simple方式；

Multicast：Multicast注册中心不需要启动任何中心节点，只要广播地址一样，就可以互相发现；

Zookeeper：Zookeeper是Apacahe Hadoop的子项目，是一个树型的目录服务，支持变更推送，适合作为Dubbo服务的注册中心，工业强度较高，可用于生产环境，并推荐使用；

Redis：基于Redis实现的注册中心，使用 Redis的Publish/Subscribe事件通知数据变更；

Simple：Simple注册中心本身就是一个普通的Dubbo服务，可以减少第三方依赖，使整体通讯方式一致；

后面重点介绍官方推荐的Zookeeper注册方式；具体的Register是在RegistryFactory中生成的，具体看一下接口定义；

RegistryFactory接口

接口定义如下：

@SPI("dubbo")
public interface RegistryFactory {

    @Adaptive({"protocol"})
    Registry getRegistry(URL url);

}

RegistryFactory提供了SPI扩展，默认使用dubbo，具体有哪些扩展可以查看META-INF/dubbo/internal/com.alibaba.dubbo.registry.RegistryFactory：

dubbo=com.alibaba.dubbo.registry.dubbo.DubboRegistryFactory
multicast=com.alibaba.dubbo.registry.multicast.MulticastRegistryFactory
zookeeper=com.alibaba.dubbo.registry.zookeeper.ZookeeperRegistryFactory
redis=com.alibaba.dubbo.registry.redis.RedisRegistryFactory

已推荐使用的Zookeeper为实例，查看ZookeeperRegistryFactory，提供了createRegistry方法：

private ZookeeperTransporter zookeeperTransporter;

public Registry createRegistry(URL url) {
       return new ZookeeperRegistry(url, zookeeperTransporter);
}

实例化ZookeeperRegistry，两个参数分别是url和zookeeperTransporter，zookeeperTransporter是操作Zookeeper的客户端组件包括：zkclient和curator两种方式

@SPI("curator")
public interface ZookeeperTransporter {

    @Adaptive({Constants.CLIENT_KEY, Constants.TRANSPORTER_KEY})
    ZookeeperClient connect(URL url);

}

ZookeeperTransporter同样提供了SPI扩展，默认使用curator方式；接下来重点看一下Zookeeper注册中心。

Zookeeper注册中心

1.整体设计流程

在dubbo的整体设计中，可以大致查看Registry层的大致流程，首先通过RegistryFactory实例化Registry，Registry可以接收RegistryProtocol传过来的注册(register)和订阅(subscribe)消息，然后Registry通过ZKClient来向Zookeeper指定的目录下写入url信息，如果是订阅消息Registry会通过NotifyListener来通知RegitryDirctory进行更新url，最后就是Cluster层通过路由，负载均衡选择具体的提供方；

2.Zookeeper注册中心流程

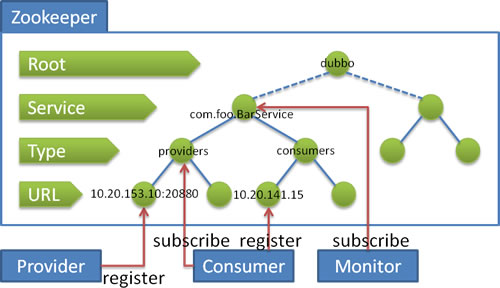

官方提供了dubbo在Zookeeper中心的流程图：

Dubbo分析之Registry层 原 荐

流程说明：

服务提供者启动时: 向/dubbo/com.foo.BarService/providers目录下写入自己的URL地址；

服务消费者启动时: 订阅/dubbo/com.foo.BarService/providers目录下的提供者URL地址；并向/dubbo/com.foo.BarService/consumers目录下写入自己的URL地址；

监控中心启动时: 订阅/dubbo/com.foo.BarService 目录下的所有提供者和消费者URL地址。

下面分别从注册(register)，注销(unregister)，订阅(subscribe)，退订(unsubscribe)四个方面来分析

3.注册(register)

ZookeeperRegistry的父类FailbackRegistry中实现了register方法，FailbackRegistry从名字可以看出来具有：失败自动恢复，后台记录失败请求，定时重发功能；下面具体看一下register方法：

public void register(URL url) {
        super.register(url);
        failedRegistered.remove(url);
        failedUnregistered.remove(url);
        try {
            // Sending a registration request to the server side
            doRegister(url);
        } catch (Exception e) {
            Throwable t = e;

            // If the startup detection is opened, the Exception is thrown directly.
            boolean check = getUrl().getParameter(Constants.CHECK_KEY, true)
                    && url.getParameter(Constants.CHECK_KEY, true)
                    && !Constants.CONSUMER_PROTOCOL.equals(url.getProtocol());
            boolean skipFailback = t instanceof SkipFailbackWrapperException;
            if (check || skipFailback) {
                if (skipFailback) {
                    t = t.getCause();
                }
                throw new IllegalStateException("Failed to register " + url + " to registry " + getUrl().getAddress() + ", cause: " + t.getMessage(), t);
            } else {
                logger.error("Failed to register " + url + ", waiting for retry, cause: " + t.getMessage(), t);
            }

            // Record a failed registration request to a failed list, retry regularly
            failedRegistered.add(url);
        }
    }

后台记录了失败的请求，包括failedRegistered和failedUnregistered，注册的时候将里面存放的url删除，然后执行doRegister方法，此方式在ZookeeperRegistry中实现，主要是在Zookeeper指定的目录下写入url信息，如果失败会记录注册失败的url，等待自动恢复；doRegister相关代码如下：

protected void doRegister(URL url) {
        try {
            zkClient.create(toUrlPath(url), url.getParameter(Constants.DYNAMIC_KEY, true));
        } catch (Throwable e) {
            throw new RpcException("Failed to register " + url + " to zookeeper " + getUrl() + ", cause: " + e.getMessage(), e);
        }
}

调用zkClient的create方法在Zookeeper上创建节点，默认创建临时节点，create方法在AbstractZookeeperClient中实现，具体源码如下：

public void create(String path, boolean ephemeral) {
       if (!ephemeral) {
           if (checkExists(path)) {
               return;
           }
       }
       int i = path.lastIndexOf('/');
       if (i > 0) {
           create(path.substring(0, i), false);
       }
       if (ephemeral) {
           createEphemeral(path);
       } else {
           createPersistent(path);
       }
   }

path指定需要创建的目录，ephemeral指定是否是创建临时节点，并且提供了递归创建目录，除了叶子目录其他目录都是持久化的；可以发现不管是创建临时目录还是持久化目录，都没有指定目录的Data，所有使用的是默认值，也就是本地ip地址；实例中创建的目录如下：

/dubbo/com.dubboApi.DemoService/providers/dubbo%3A%2F%2F10.13.83.7%3A20880%2Fcom.dubboApi.DemoService%3Fanyhost%3Dtrue%26application%3Dhello-world-app%26dubbo%3D2.0.2%26generic%3Dfalse%26interface%3Dcom.dubboApi.DemoService%26methods%3DsyncSayHello%2CsayHello%2CasyncSayHello%26pid%3D13252%26serialization%3Dprotobuf%26side%3Dprovider%26timestamp%3D1545297239027

dubbo是一个根节点，然后是service名称，providers是固定的一个类型，如果是消费端这里就是consumers，最后就是一个临时节点；使用临时节点的目的就是提供者出现断电等异常停机时，注册中心能自动删除提供者信息；可以通过如下方法查询当前的目录节点信息：

public class CuratorTest {

    static String path = "/dubbo";
    static CuratorFramework client = CuratorFrameworkFactory.builder().connectString("127.0.0.1:2181")
            .sessionTimeoutMs(5000).retryPolicy(new ExponentialBackoffRetry(1000, 3)).build();

    public static void main(String[] args) throws Exception {
        client.start();
        List<String> paths = listChildren(path);
        for (String path : paths) {
            Stat stat = new Stat();
            System.err.println(
                    "path:" + path + ",value:" + new String(client.getData().storingStatIn(stat).forPath(path)));
        }
    }

    private static List<String> listChildren(String path) throws Exception {
        List<String> pathList = new ArrayList<String>();
        pathList.add(path);
        List<String> list = client.getChildren().forPath(path);
        if (list != null && list.size() > 0) {
            for (String cPath : list) {
                String temp = "";
                if ("/".equals(path)) {
                    temp = path + cPath;
                } else {
                    temp = path + "/" + cPath;
                }
                pathList.addAll(listChildren(temp));
            }
        }
        return pathList;
    }
}

递归遍历/dubbo目录下的所有子目录，同时将节点存储的数据都查询出来，结果如下：

path:/dubbo,value:10.13.83.7
path:/dubbo/com.dubboApi.DemoService,value:10.13.83.7
path:/dubbo/com.dubboApi.DemoService/configurators,value:10.13.83.7
path:/dubbo/com.dubboApi.DemoService/providers,value:10.13.83.7
path:/dubbo/com.dubboApi.DemoService/providers/dubbo%3A%2F%2F10.13.83.7%3A20880%2Fcom.dubboApi.DemoService%3Fanyhost%3Dtrue%26application%3Dhello-world-app%26dubbo%3D2.0.2%26generic%3Dfalse%26interface%3Dcom.dubboApi.DemoService%26methods%3DsyncSayHello%2CsayHello%2CasyncSayHello%26pid%3D4712%26serialization%3Dprotobuf%26side%3Dprovider%26timestamp%3D1545358401966,value:10.13.83.7

除了最后一个节点是临时节点，其他都是持久化的；

4.注销(unregister)

同样在父类FailbackRegistry中实现了unregister方法，代码如下：

public void unregister(URL url) {
       super.unregister(url);
       failedRegistered.remove(url);
       failedUnregistered.remove(url);
       try {
           // Sending a cancellation request to the server side
           doUnregister(url);
       } catch (Exception e) {
           Throwable t = e;

           // If the startup detection is opened, the Exception is thrown directly.
           boolean check = getUrl().getParameter(Constants.CHECK_KEY, true)
                   && url.getParameter(Constants.CHECK_KEY, true)
                   && !Constants.CONSUMER_PROTOCOL.equals(url.getProtocol());
           boolean skipFailback = t instanceof SkipFailbackWrapperException;
           if (check || skipFailback) {
               if (skipFailback) {
                   t = t.getCause();
               }
               throw new IllegalStateException("Failed to unregister " + url + " to registry " + getUrl().getAddress() + ", cause: " + t.getMessage(), t);
           } else {
               logger.error("Failed to uregister " + url + ", waiting for retry, cause: " + t.getMessage(), t);
           }

           // Record a failed registration request to a failed list, retry regularly
           failedUnregistered.add(url);
       }
   }

注销时同样删除了failedRegistered和failedUnregistered存放的url，然后调用doUnregister，删除Zookeeper中的目录节点，失败的情况下会存储在failedUnregistered中，等待重试；

protected void doUnregister(URL url) {
    try {
        zkClient.delete(toUrlPath(url));
    } catch (Throwable e) {
        throw new RpcException("Failed to unregister " + url + " to zookeeper " + getUrl() + ", cause: " + e.getMessage(), e);
    }
}

//CuratorZookeeperClient删除操作
public void delete(String path) {
    try {
        client.delete().forPath(path);
    } catch (NoNodeException e) {
    } catch (Exception e) {
        throw new IllegalStateException(e.getMessage(), e);
    }
}

直接使用CuratorZookeeperClient中的delete方法删除临时节点；

5.订阅(subscribe)

服务消费者启动时，会先向Zookeeper注册消费者节点信息，然后订阅…/providers目录下提供者的URL地址；消费端也同样需要注册节点信息，是因为监控中心需要对服务端和消费端都进行监控；下面重点看一下订阅的相关代码，在父类FailbackRegistry中实现了subscribe方法：

public void subscribe(URL url, NotifyListener listener) {
       super.subscribe(url, listener);
       removeFailedSubscribed(url, listener);
       try {
           // Sending a subscription request to the server side
           doSubscribe(url, listener);
       } catch (Exception e) {
           Throwable t = e;

           List<URL> urls = getCacheUrls(url);
           if (urls != null && !urls.isEmpty()) {
               notify(url, listener, urls);
               logger.error("Failed to subscribe " + url + ", Using cached list: " + urls + " from cache file: " + getUrl().getParameter(Constants.FILE_KEY, System.getProperty("user.home") + "/dubbo-registry-" + url.getHost() + ".cache") + ", cause: " + t.getMessage(), t);
           } else {
               // If the startup detection is opened, the Exception is thrown directly.
               boolean check = getUrl().getParameter(Constants.CHECK_KEY, true)
                       && url.getParameter(Constants.CHECK_KEY, true);
               boolean skipFailback = t instanceof SkipFailbackWrapperException;
               if (check || skipFailback) {
                   if (skipFailback) {
                       t = t.getCause();
                   }
                   throw new IllegalStateException("Failed to subscribe " + url + ", cause: " + t.getMessage(), t);
               } else {
                   logger.error("Failed to subscribe " + url + ", waiting for retry, cause: " + t.getMessage(), t);
               }
           }

           // Record a failed registration request to a failed list, retry regularly
           addFailedSubscribed(url, listener);
       }
   }

类似的格式，同样存储了失败了订阅url信息，重点看ZookeeperRegistry中的doSubscribe方法：

private final ConcurrentMap<URL, ConcurrentMap<NotifyListener, ChildListener>> zkListeners = new ConcurrentHashMap<URL, ConcurrentMap<NotifyListener, ChildListener>>();

protected void doSubscribe(final URL url, final NotifyListener listener) {
       try {
           if (Constants.ANY_VALUE.equals(url.getServiceInterface())) {
               String root = toRootPath();
               ConcurrentMap<NotifyListener, ChildListener> listeners = zkListeners.get(url);
               if (listeners == null) {
                   zkListeners.putIfAbsent(url, new ConcurrentHashMap<NotifyListener, ChildListener>());
                   listeners = zkListeners.get(url);
               }
               ChildListener zkListener = listeners.get(listener);
               if (zkListener == null) {
                   listeners.putIfAbsent(listener, new ChildListener() {
                       @Override
                       public void childChanged(String parentPath, List<String> currentChilds) {
                           for (String child : currentChilds) {
                               child = URL.decode(child);
                               if (!anyServices.contains(child)) {
                                   anyServices.add(child);
                                   subscribe(url.setPath(child).addParameters(Constants.INTERFACE_KEY, child,
                                           Constants.CHECK_KEY, String.valueOf(false)), listener);
                               }
                           }
                       }
                   });
                   zkListener = listeners.get(listener);
               }
               zkClient.create(root, false);
               List<String> services = zkClient.addChildListener(root, zkListener);
               if (services != null && !services.isEmpty()) {
                   for (String service : services) {
                       service = URL.decode(service);
                       anyServices.add(service);
                       subscribe(url.setPath(service).addParameters(Constants.INTERFACE_KEY, service,
                               Constants.CHECK_KEY, String.valueOf(false)), listener);
                   }
               }
           } else {
               List<URL> urls = new ArrayList<URL>();
               for (String path : toCategoriesPath(url)) {
                   ConcurrentMap<NotifyListener, ChildListener> listeners = zkListeners.get(url);
                   if (listeners == null) {
                       zkListeners.putIfAbsent(url, new ConcurrentHashMap<NotifyListener, ChildListener>());
                       listeners = zkListeners.get(url);
                   }
                   ChildListener zkListener = listeners.get(listener);
                   if (zkListener == null) {
                       listeners.putIfAbsent(listener, new ChildListener() {
                           @Override
                           public void childChanged(String parentPath, List<String> currentChilds) {
                               ZookeeperRegistry.this.notify(url, listener, toUrlsWithEmpty(url, parentPath, currentChilds));
                           }
                       });
                       zkListener = listeners.get(listener);
                   }
                   zkClient.create(path, false);
                   List<String> children = zkClient.addChildListener(path, zkListener);
                   if (children != null) {
                       urls.addAll(toUrlsWithEmpty(url, path, children));
                   }
               }
               notify(url, listener, urls);
           }
       } catch (Throwable e) {
           throw new RpcException("Failed to subscribe " + url + " to zookeeper " + getUrl() + ", cause: " + e.getMessage(), e);
       }
   }

在ZookeeperRegistry中定义了一个zkListeners变量，每个URL对应了一个map；map里面分别是NotifyListener和ChildListener的对应关系，消费端订阅时这里的NotifyListener其实就是RegistryDirectory，ChildListener是一个内部类，用来在监听的节点发生变更时，通知对应的消费端，具体的监听处理是在zkClient.addChildListener中实现的：

public List<String> addChildListener(String path, final ChildListener listener) {
    ConcurrentMap<ChildListener, TargetChildListener> listeners = childListeners.get(path);
    if (listeners == null) {
        childListeners.putIfAbsent(path, new ConcurrentHashMap<ChildListener, TargetChildListener>());
        listeners = childListeners.get(path);
    }
    TargetChildListener targetListener = listeners.get(listener);
    if (targetListener == null) {
        listeners.putIfAbsent(listener, createTargetChildListener(path, listener));
        targetListener = listeners.get(listener);
    }
    return addTargetChildListener(path, targetListener);
}

public CuratorWatcher createTargetChildListener(String path, ChildListener listener) {
    return new CuratorWatcherImpl(listener);
}

public List<String> addTargetChildListener(String path, CuratorWatcher listener) {
    try {
        return client.getChildren().usingWatcher(listener).forPath(path);
    } catch (NoNodeException e) {
        return null;
    } catch (Exception e) {
        throw new IllegalStateException(e.getMessage(), e);
    }
}

private class CuratorWatcherImpl implements CuratorWatcher {

    private volatile ChildListener listener;

    public CuratorWatcherImpl(ChildListener listener) {
        this.listener = listener;
    }

    public void unwatch() {
        this.listener = null;
    }

    @Override
    public void process(WatchedEvent event) throws Exception {
        if (listener != null) {
            String path = event.getPath() == null ? "" : event.getPath();
            listener.childChanged(path,
                    StringUtils.isNotEmpty(path)
                            ? client.getChildren().usingWatcher(this).forPath(path)
                            : Collections.<String>emptyList());
        }
    }
}

CuratorWatcherImpl实现了Zookeeper的监听接口CuratorWatcher，用来在节点有变更时通知对应的ChildListener，这样ChildListener就可以通知RegistryDirectory进行更新数据；

6.退订(unsubscribe)

在父类FailbackRegistry中实现了unsubscribe方法

public void unsubscribe(URL url, NotifyListener listener) {
        super.unsubscribe(url, listener);
        removeFailedSubscribed(url, listener);
        try {
            // Sending a canceling subscription request to the server side
            doUnsubscribe(url, listener);
        } catch (Exception e) {
            Throwable t = e;

            // If the startup detection is opened, the Exception is thrown directly.
            boolean check = getUrl().getParameter(Constants.CHECK_KEY, true)
                    && url.getParameter(Constants.CHECK_KEY, true);
            boolean skipFailback = t instanceof SkipFailbackWrapperException;
            if (check || skipFailback) {
                if (skipFailback) {
                    t = t.getCause();
                }
                throw new IllegalStateException("Failed to unsubscribe " + url + " to registry " + getUrl().getAddress() + ", cause: " + t.getMessage(), t);
            } else {
                logger.error("Failed to unsubscribe " + url + ", waiting for retry, cause: " + t.getMessage(), t);
            }

            // Record a failed registration request to a failed list, retry regularly
            Set<NotifyListener> listeners = failedUnsubscribed.get(url);
            if (listeners == null) {
                failedUnsubscribed.putIfAbsent(url, new ConcurrentHashSet<NotifyListener>());
                listeners = failedUnsubscribed.get(url);
            }
            listeners.add(listener);
        }
    }

同样使用failedUnsubscribed用来存储失败退订的url，具体看ZookeeperRegistry中的doUnsubscribe方法

protected void doUnsubscribe(URL url, NotifyListener listener) {
        ConcurrentMap<NotifyListener, ChildListener> listeners = zkListeners.get(url);
        if (listeners != null) {
            ChildListener zkListener = listeners.get(listener);
            if (zkListener != null) {
                if (Constants.ANY_VALUE.equals(url.getServiceInterface())) {
                    String root = toRootPath();
                    zkClient.removeChildListener(root, zkListener);
                } else {
                    for (String path : toCategoriesPath(url)) {
                        zkClient.removeChildListener(path, zkListener);
                    }
                }
            }
        }
    }

退订就比较简单了，只需要移除监听器就可以了；

7.失败重试

FailbackRegistry从名字可以看出来具有：失败自动恢复，后台记录失败请求，定时重发功能；在FailbackRegistry的构造器中启动了一个定时器：

this.retryFuture = retryExecutor.scheduleWithFixedDelay(new Runnable() {
           @Override
           public void run() {
               // Check and connect to the registry
               try {
                   retry();
               } catch (Throwable t) { // Defensive fault tolerance
                   logger.error("Unexpected error occur at failed retry, cause: " + t.getMessage(), t);
               }
           }
       }, retryPeriod, retryPeriod, TimeUnit.MILLISECONDS);

实例化了一个间隔5秒执行一次重试的定时器，retry部分代码如下：

protected void retry() {
        if (!failedRegistered.isEmpty()) {
            Set<URL> failed = new HashSet<URL>(failedRegistered);
            if (failed.size() > 0) {
                if (logger.isInfoEnabled()) {
                    logger.info("Retry register " + failed);
                }
                try {
                    for (URL url : failed) {
                        try {
                            doRegister(url);
                            failedRegistered.remove(url);
                        } catch (Throwable t) { // Ignore all the exceptions and wait for the next retry
                            logger.warn("Failed to retry register " + failed + ", waiting for again, cause: " + t.getMessage(), t);
                        }
                    }
                } catch (Throwable t) { // Ignore all the exceptions and wait for the next retry
                    logger.warn("Failed to retry register " + failed + ", waiting for again, cause: " + t.getMessage(), t);
                }
            }
        }
        ...省略...
}

定期检查是否存在失败的注册(register)，注销(unregister)，订阅(subscribe)，退订(unsubscribe)URL，如果存在则重试；

总结

本文首先介绍了RegistryFactory, Registry, RegistryService几个核心接口，然后以Zookeeper为注册中心重点介绍了注册(register)，注销(unregister)，订阅(subscribe)，退订(unsubscribe)方式。

示例代码地址

原文  https://my.oschina.net/OutOfMemory/blog/2991498
正文到此结束
所属分类： Java 编程技术

热门推荐

相关文章

阿里云首购8折
说给你听

本文目录
随机标签
书籍教程
Java入门教程 bootstrap3 CSS Apache基础教程 springboot-demo php ionic 教程 Python mysql教程 eclipse Ubuntu VPS系统配置 AngularJS 教程 Struts2教程 MongoDB教程 Redis教程 Spring教程 Git教程 Jenkins进阶系列 openfire参考指南 Java设计模式 HBase教程 Maven教程 hibernate教程 Docker 教程 memcached教程 Quartz指南 SpringCloud ANTLR教程 Hive教程 java实例教程 Ant教程 Hazelcast教程 Elastic-Job-Lite XStream教程 深入浅出MyBatis SVN教程 ibaties教程 rabittmq教程 WebService CXF学习 Hadoop教程 solr教程 JPA教程 ActiveMQ中文指南 Java内存模型 dubbo教程 Linux入门视频教程
近期评论
  1. 1 Spring Boot集成zipkin快速入门Demo
  2. 2 能用365块大洋去解决的事，千万不要用时间
  3. 3 Spring Boot集成atomikos快速入门Demo
  4. 4 Spring Boot集成fastdfs快速入门Demo
  5. 5 Spring Boot集成Https快速入门Demo
  6. 6 Spring Boot集成easypoi快速入门Demo
  7. 7 Spring Boot集成webflux快速入门Demo
  8. 8 Spring Boot集成Graphql快速入门Demo
  9. 9 Spring Boot API 多版本快速入门Demo
  10. 10 Spring Boot内容协商快速入门Demo
网站信息
  • 文章总数：155,459 篇
  • 文件总数：468,740 个
  • 标签总数：2,264 个
  • 分类总数：90 个
  • 留言数量：2,540 条
  • 在线人数：629 人
  • 运行天数：4,192天
  • 最后更新：2024年04月19日17点
Loading...

其他链接

关于本站

本站定位：个人技术类博客

本站作用：写博客、记日志、闲聊扯淡鼓捣技术。

问题交流

[HBLOG]公众号 HBLOG HBLOG
