Spring Cloud Eureka是Spring Cloud Netflix 子项目的核心组件之一,主要用于微服务架构中的服务治理。 本文将对搭建Eureka注册中心,搭建Eureka客户端,搭建Eureka集群及给Eureka注册中心添加登录认证进行介绍。
在微服务架构中往往会有一个注册中心,每个微服务都会向注册中心去注册自己的地址及端口信息,注册中心维护着服务名称与服务实例的对应关系。每个微服务都会定时从注册中心获取服务列表,同时汇报自己的运行情况,这样当有的服务需要调用其他服务时,就可以从自己获取到的服务列表中获取实例地址进行调用,Eureka实现了这套服务注册与发现机制。

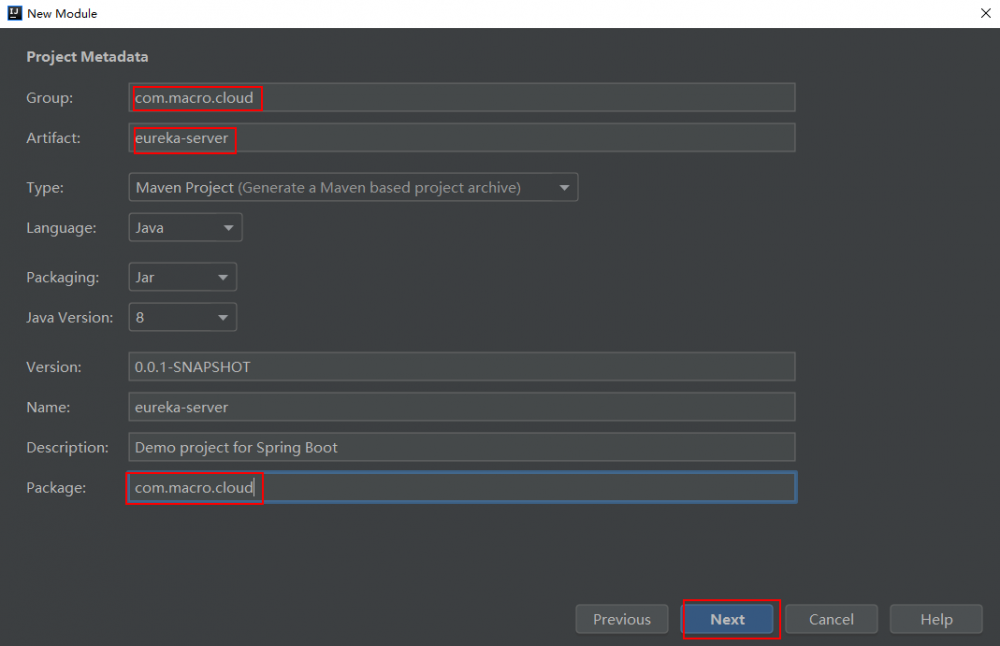

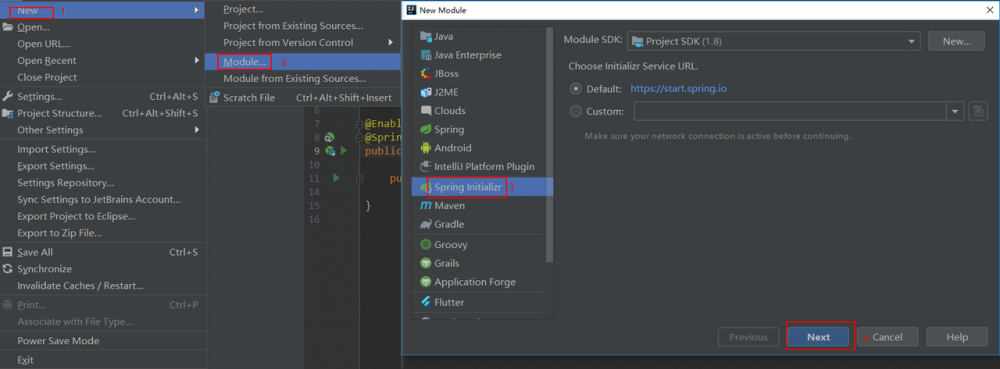

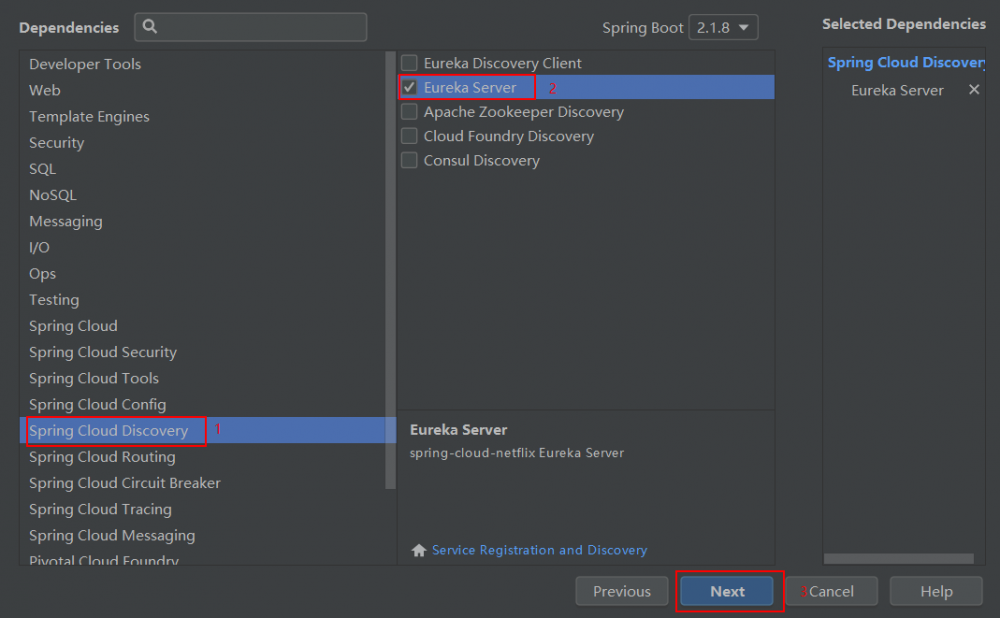

这里我们以创建并运行Eureka注册中心来看看在IDEA中创建并运行SpringCloud应用的正确姿势。
<dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId> </dependency> 复制代码
@EnableEurekaServer @SpringBootApplication public class EurekaServerApplication { public static void main(String[] args) { SpringApplication.run(EurekaServerApplication.class, args); } } 复制代码
server: port: 8001 #指定运行端口 spring: application: name: eureka-server #指定服务名称 eureka: instance: hostname: localhost #指定主机地址 client: fetch-registry: false #指定是否要从注册中心获取服务(注册中心不需要开启) register-with-eureka: false #指定是否要注册到注册中心(注册中心不需要开启) server: enable-self-preservation: false #关闭保护模式 复制代码

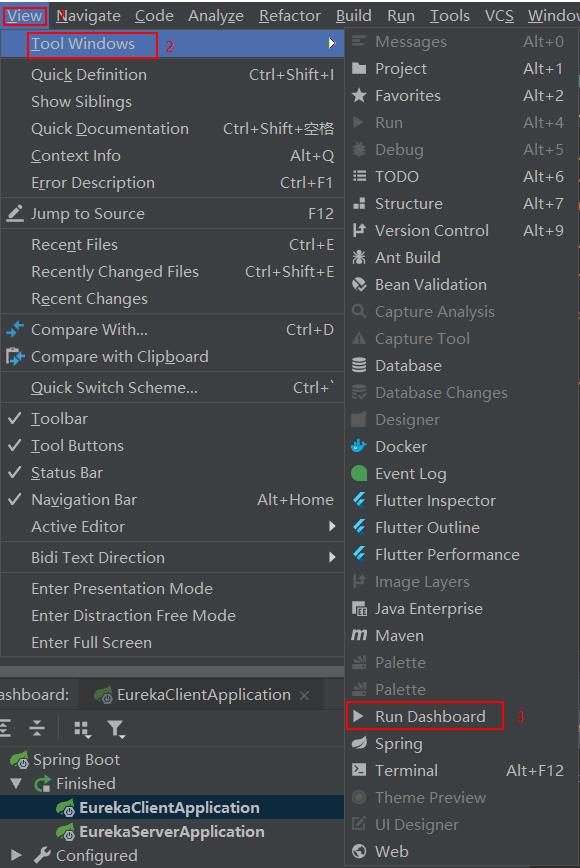

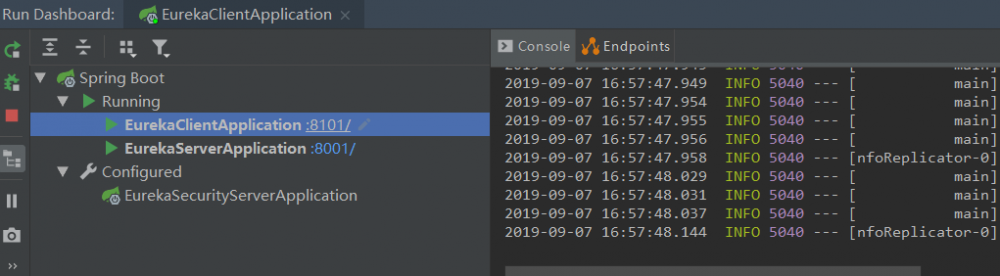

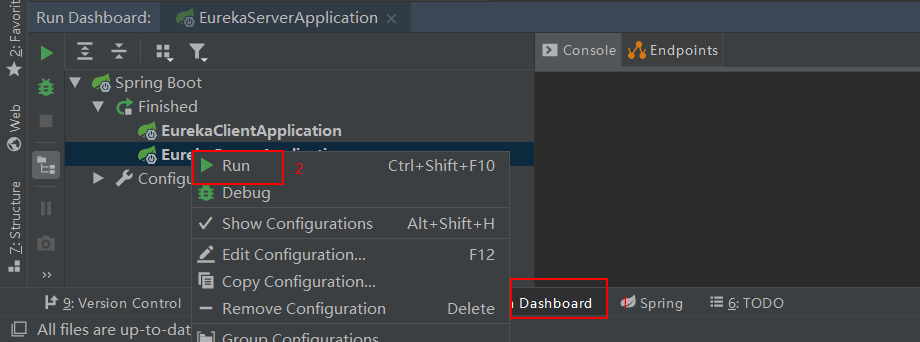

此时服务已经创建完成,点击启动类的main方法就可以运行了。但是在微服务项目中我们会启动很多服务,为了便于管理,我们使用IDEA的Run Dashboard来启动。
<dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> 复制代码
@EnableDiscoveryClient @SpringBootApplication public class EurekaClientApplication { public static void main(String[] args) { SpringApplication.run(EurekaClientApplication.class, args); } } 复制代码
server: port: 8101 #运行端口号 spring: application: name: eureka-client #服务名称 eureka: client: register-with-eureka: true #注册到Eureka的注册中心 fetch-registry: true #获取注册实例列表 service-url: defaultZone: http://localhost:8001/eureka/ #配置注册中心地址 复制代码
由于所有服务都会注册到注册中心去,服务之间的调用都是通过从注册中心获取的服务列表来调用,注册中心一旦宕机,所有服务调用都会出现问题。所以我们需要多个注册中心组成集群来提供服务,下面将搭建一个双节点的注册中心集群。
server: port: 8002 spring: application: name: eureka-server eureka: instance: hostname: replica1 client: serviceUrl: defaultZone: http://replica2:8003/eureka/ #注册到另一个Eureka注册中心 fetch-registry: true register-with-eureka: true 复制代码
server: port: 8003 spring: application: name: eureka-server eureka: instance: hostname: replica2 client: serviceUrl: defaultZone: http://replica1:8002/eureka/ #注册到另一个Eureka注册中心 fetch-registry: true register-with-eureka: true 复制代码
这里我们通过两个注册中心互相注册,搭建了注册中心的双节点集群,由于defaultZone使用了域名,所以还需在本机的host文件中配置一下。
127.0.0.1 replica1 127.0.0.1 replica2 复制代码
在IDEA中我们可以通过使用不同的配置文件来启动同一个SpringBoot应用。

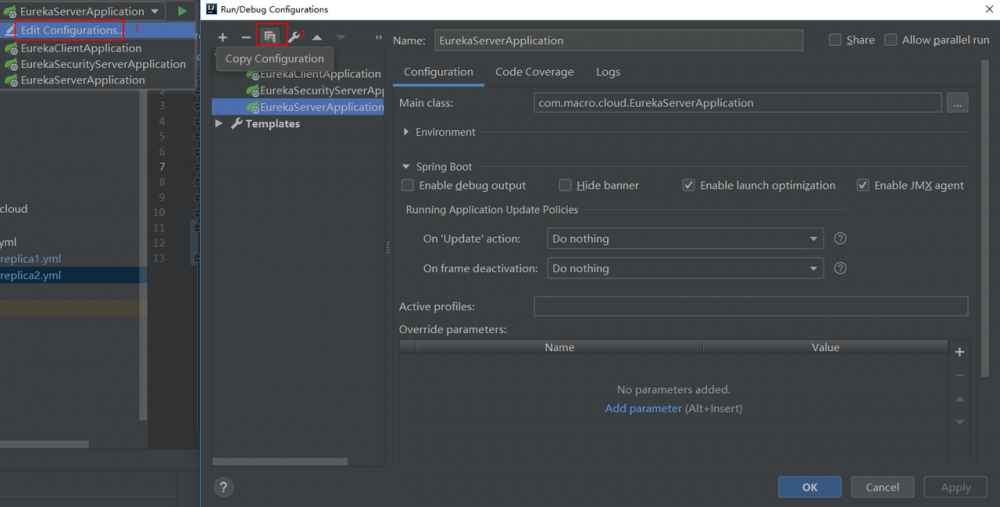

从原启动配置中复制一个出来

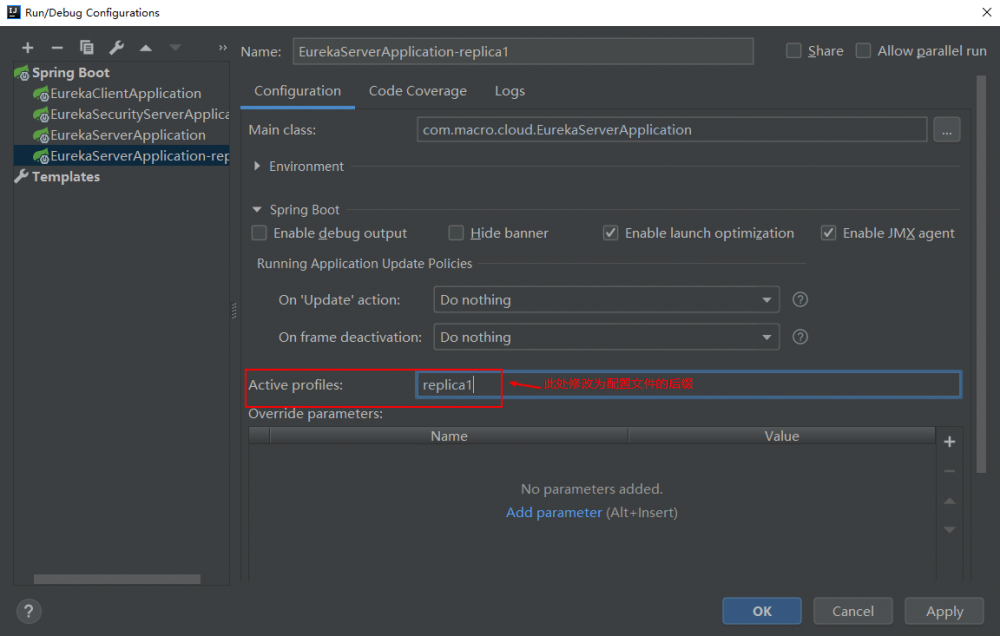

配置启动的配置文件
添加eureka-client的配置文件application-replica.yml,让其同时注册到两个注册中心。
server: port: 8102 spring: application: name: eureka-client eureka: client: register-with-eureka: true fetch-registry: true service-url: defaultZone: http://replica1:8002/eureka/,http://replica2:8003/eureka/ #同时注册到两个注册中心 复制代码

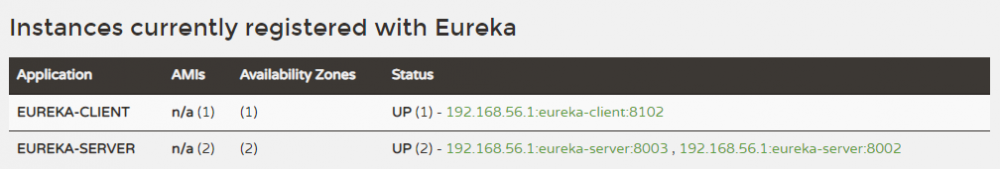

以该配置文件启动后访问任意一个注册中心节点都可以看到eureka-client
需要添加SpringSecurity模块。
<dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-security</artifactId> </dependency> 复制代码

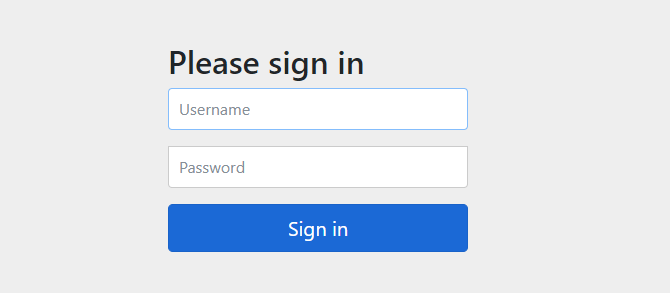

主要是配置了登录注册中心的用户名和密码。
server: port: 8004 spring: application: name: eureka-security-server security: #配置SpringSecurity登录用户名和密码 user: name: macro password: 123456 eureka: instance: hostname: localhost client: fetch-registry: false register-with-eureka: false 复制代码
默认情况下添加SpringSecurity依赖的应用每个请求都需要添加CSRF token才能访问,Eureka客户端注册时并不会添加,所以需要配置/eureka/**路径不需要CSRF token。
@EnableWebSecurity public class WebSecurityConfig extends WebSecurityConfigurerAdapter { @Override protected void configure(HttpSecurity http) throws Exception { http.csrf().ignoringAntMatchers("/eureka/**"); super.configure(http); } } 复制代码
http://${username}:${password}@${hostname}:${port}/eureka/ 复制代码

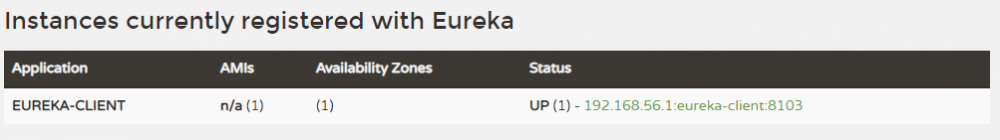

server: port: 8103 spring: application: name: eureka-client eureka: client: register-with-eureka: true fetch-registry: true service-url: defaultZone: http://macro:123456@localhost:8004/eureka/ 复制代码
eureka: client: #eureka客户端配置 register-with-eureka: true #是否将自己注册到eureka服务端上去 fetch-registry: true #是否获取eureka服务端上注册的服务列表 service-url: defaultZone: http://localhost:8001/eureka/ # 指定注册中心地址 enabled: true # 启用eureka客户端 registry-fetch-interval-seconds: 30 #定义去eureka服务端获取服务列表的时间间隔 instance: #eureka客户端实例配置 lease-renewal-interval-in-seconds: 30 #定义服务多久去注册中心续约 lease-expiration-duration-in-seconds: 90 #定义服务多久不去续约认为服务失效 metadata-map: zone: jiangsu #所在区域 hostname: localhost #服务主机名称 prefer-ip-address: false #是否优先使用ip来作为主机名 server: #eureka服务端配置 enable-self-preservation: false #关闭eureka服务端的保护机制 复制代码
springcloud-learning ├── eureka-server -- eureka注册中心 ├── eureka-security-server -- 带登录认证的eureka注册中心 └── eureka-client -- eureka客户端 复制代码
