Dubbo注册中心

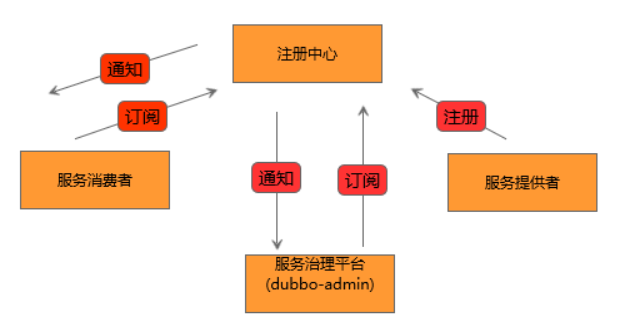

1.注册中心的作用

利用注册中心，服务提供者可以动态添加删除服务，服务消费者在收到更新通知后，可以拉取最新的服务从而实现同步。可以在注册中心实现统一配置，参数的动态调整可以自动通知到所有服务节点。

2.Dubbo四种注册中心实现

Dubbo注册中心的实现在dubbo-registry模块。

2.1 ZooKeeper

基于Zookeeper。ZooKeeper学习

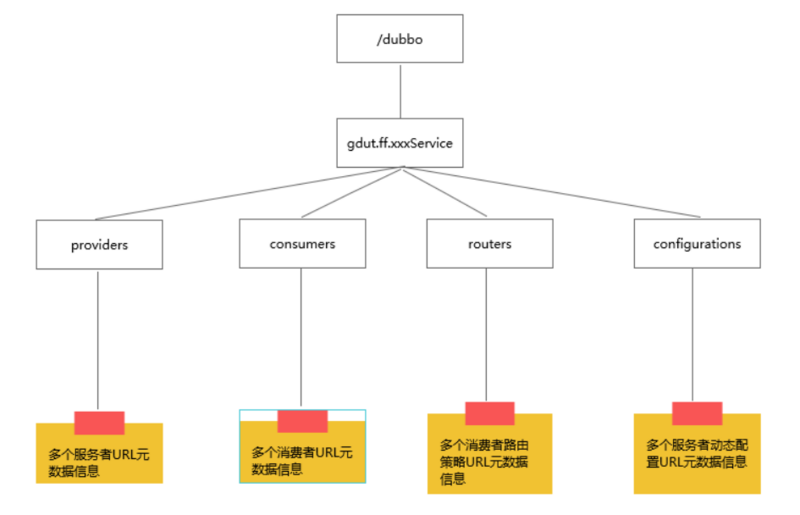

2.1.1 Zookeeper注册中心数据结构

2.1.2 Zookeeper注册中心实现原理

Zookeeper注册中心采用"事件通知" + “客户端拉取”的实现方式：

• 客户端在第一次连接注册中心的时候，会获取对应目录下的全量数据。
• 客户端会在订阅的节点上注册一个watch,客户端与注册中心之间保持TCP长连接。
• 当节点发生事务操作，节点的版本号发生改变，就会触发watch事件，推送数据给订阅方，订阅方收到通知之后，就会拉取对应目录下的数据。
• 服务治理中心会订阅所有service层的数据，service被设置成"*"，表示订阅全部。

2.1.3 Zookeeper注册和取消注册

//注册
protected void doRegister(URL url) {
    try {
        //创建目录
        zkClient.create(toUrlPath(url), url.getParameter(Constants.DYNAMIC_KEY, true));
    } catch (Throwable e) {
        throw new RpcException("Failed to register " + url + " to zookeeper " + getUrl() + ", cause: " + e.getMessage(), e);
    }
}

//取消注册
protected void doUnregister(URL url) {
    try {
        //删除目录
        zkClient.delete(toUrlPath(url));
    } catch (Throwable e) {
        throw new RpcException("Failed to unregister " + url + " to zookeeper " + getUrl() + ", cause: " + e.getMessage(), e);
    }
}

private String toUrlPath(URL url) {
    return toCategoryPath(url) + Constants.PATH_SEPARATOR + URL.encode(url.toFullString());
}

//返回"/dubbo/接口名称/providers"
private String toCategoryPath(URL url) {
    return toServicePath(url) + Constants.PATH_SEPARATOR + url.getParameter(Constants.CATEGORY_KEY, Constants.DEFAULT_CATEGORY);
}

//返回"/dubbo/接口名称"
private String toServicePath(URL url) {
    String name = url.getServiceInterface();
    if (Constants.ANY_VALUE.equals(name)) {
        return toRootPath();
    }
    return toRootDir() + URL.encode(name);
}

//返回"/"或者"/dubbo/"
private String toRootDir() {
    if (root.equals(Constants.PATH_SEPARATOR)) {
        return root;
    }
    return root + Constants.PATH_SEPARATOR;
}

private String toRootPath() {
    return root;
}

private final static String DEFAULT_ROOT = "dubbo";
private final ZookeeperClient zkClient;

public ZookeeperRegistry(URL url, ZookeeperTransporter zookeeperTransporter) {
    //省略n行代码
    String group = url.getParameter(Constants.GROUP_KEY, DEFAULT_ROOT);
    //添加前缀"/"
    if (!group.startsWith(Constants.PATH_SEPARATOR)) {
        group = Constants.PATH_SEPARATOR + group;
    }
    this.root = group;
    zkClient = zookeeperTransporter.connect(url);
    //省略n行代码
}

ZookeeperClient和ZookeeperTransporter都是接口，在Dubbo中有两种实现，一种是基于curator客户端的CuratorZookeeperClient和CuratorZookeeperTransporter；另一种是基于zkclient客户端的ZkclientZookeeperClient和ZkclientZookeeperTransporter。默认实现是curator。

@SPI("curator")
public interface ZookeeperTransporter {

    @Adaptive({Constants.CLIENT_KEY, Constants.TRANSPORTER_KEY})
    ZookeeperClient connect(URL url);

}

在不能根据Constants.CLIENT_KEY和Constants.TRANSPORTER_KEY找到匹配的URL的时候，就会使用默认的Curator实现。

2.1.4 Zookeeper订阅的实现

先看看ConcurrentMap的put和putIfAbsent的区别

public static final String ANY_VALUE = "*";
public static final String INTERFACE_KEY = "interface";
public static final String CHECK_KEY = "check";

protected void doSubscribe(final URL url, final NotifyListener listener) {
        try {
            //当接口名称是*的时候表示订阅全部Service
            if (Constants.ANY_VALUE.equals(url.getServiceInterface())) {
                //默认值是"/dubbo"
                String root = toRootPath();
                ConcurrentMap<NotifyListener, ChildListener> listeners = zkListeners.get(url);
                if (listeners == null) {
                    //listeners为空，说明缓存中没有
                    zkListeners.putIfAbsent(url, new ConcurrentHashMap<NotifyListener, ChildListener>());
                    listeners = zkListeners.get(url);
                }
                ChildListener zkListener = listeners.get(listener);
                if (zkListener == null) {
                    //zkListener为空，说明是第一次调用
                    listeners.putIfAbsent(listener, new ChildListener() {
                        //这个内部方法不会立即执行，会在触发变更通知时执行
                        @Override
                        public void childChanged(String parentPath, List<String> currentChilds) {
                            //遍历所有子节点
                            for (String child : currentChilds) {
                                child = URL.decode(child);
                                //如果有子节点没有订阅，就进行订阅。
                                if (!anyServices.contains(child)) {
                                    anyServices.add(child);
                                    subscribe(url.setPath(child).addParameters(Constants.INTERFACE_KEY, child,
                                            Constants.CHECK_KEY, String.valueOf(false)), listener);
                                }
                            }
                        }
                    });
                    zkListener = listeners.get(listener);
                }
                //创建持久节点
                zkClient.create(root, false);
                //遍历订阅持久节点的直接子节点
                List<String> services = zkClient.addChildListener(root, zkListener);
                if (services != null && !services.isEmpty()) {
                    for (String service : services) {
                        service = URL.decode(service);
                        anyServices.add(service);
                        subscribe(url.setPath(service).addParameters(Constants.INTERFACE_KEY, service,
                                Constants.CHECK_KEY, String.valueOf(false)), listener);
                    }
                }
            } else {
                List<URL> urls = new ArrayList<URL>();
                for (String path : toCategoriesPath(url)) {
                    ConcurrentMap<NotifyListener, ChildListener> listeners = zkListeners.get(url);
                    if (listeners == null) {
                        zkListeners.putIfAbsent(url, new ConcurrentHashMap<NotifyListener, ChildListener>());
                        listeners = zkListeners.get(url);
                    }
                    ChildListener zkListener = listeners.get(listener);
                    if (zkListener == null) {
                        listeners.putIfAbsent(listener, new ChildListener() {
                            @Override
                            public void childChanged(String parentPath, List<String> currentChilds) {
                                ZookeeperRegistry.this.notify(url, listener, toUrlsWithEmpty(url, parentPath, currentChilds));
                            }
                        });
                        zkListener = listeners.get(listener);
                    }
                    zkClient.create(path, false);
                    List<String> children = zkClient.addChildListener(path, zkListener);
                    if (children != null) {
                        urls.addAll(toUrlsWithEmpty(url, path, children));
                    }
                }
                notify(url, listener, urls);
            }
        } catch (Throwable e) {
            throw new RpcException("Failed to subscribe " + url + " to zookeeper " + getUrl() + ", cause: " + e.getMessage(), e);
        }
    }

private String[] toCategoriesPath(URL url) {
    String[] categories;
    //如果类别是"*",订阅四种类型的路径(providers,consumers,routers,configurations)
    if (Constants.ANY_VALUE.equals(url.getParameter(Constants.CATEGORY_KEY))) {
        categories = new String[]{Constants.PROVIDERS_CATEGORY, Constants.CONSUMERS_CATEGORY,
                Constants.ROUTERS_CATEGORY, Constants.CONFIGURATORS_CATEGORY};
    } else {
        //默认是providers
        categories = url.getParameter(Constants.CATEGORY_KEY, new String[]{Constants.DEFAULT_CATEGORY});
    }
    String[] paths = new String[categories.length];
    for (int i = 0; i < categories.length; i++) {
        paths[i] = toServicePath(url) + Constants.PATH_SEPARATOR + categories[i];
    }
    return paths;
}

2.2 Redis

基于Redis。Redis学习

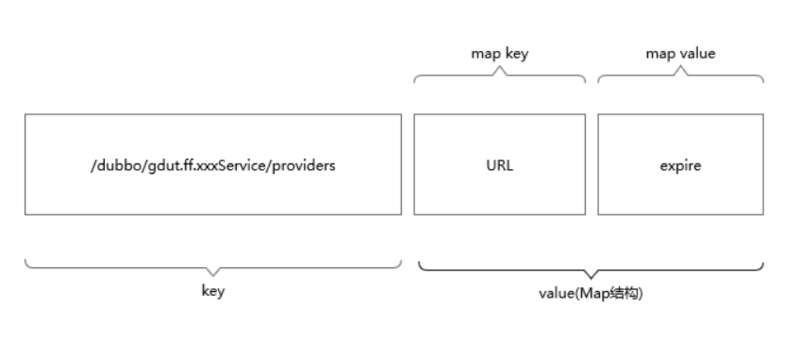

2.2.1 Redis注册中心数据结构

2.2.2 Redis续期Key和清理Key

org.apache.dubbo.registry.redis.RedisRegistry.deferExpired()定义了Redis刷新key的过期时间和清除过期的key。服务提供者发布一个服务，会先在Redis中创建一个Key，然后发布register事件，在RedisRegistry的构造方法中启动expireExecutor线程池周期性调用deferExpired方法刷新服务的过期时间，

private volatile boolean admin = false;

//获取本地缓存所有已经注册的key
for (URL url : new HashSet<URL>(getRegistered())) {
    if (url.getParameter(Constants.DYNAMIC_KEY, true)) {
        String key = toCategoryPath(url);
        //刷新过期时间
        if (jedis.hset(key, url.toFullString(), String.valueOf(System.currentTimeMillis() + expirePeriod)) == 1) {
            //广播，重新发布
            jedis.publish(key, Constants.REGISTER);
        }
    }
}
//如果是服务治理中心，需要清除过期的Key
if (admin) {
    clean(jedis);
}

org.apache.dubbo.common.Constants类定义常量。

public static final String DYNAMIC_KEY = "dynamic";

org.apache.dubbo.registry.support.AbstractRegistry.getRegistered()获取缓存的key。

private final Set<URL> registered = new ConcurrentHashSet<URL>();

public Set<URL> getRegistered() {
    return registered;
}

public void register(URL url) {
    if (url == null) {
        throw new IllegalArgumentException("register url == null");
    }
    if (logger.isInfoEnabled()) {
        logger.info("Register: " + url);
    }
    registered.add(url);
}

org.apache.dubbo.registry.redis.RedisRegistry.clean()服务治理中心删除过期的key。

private void clean(Jedis jedis) {
    Set<String> keys = jedis.keys(root + Constants.ANY_VALUE);
    if (keys != null && !keys.isEmpty()) {
        for (String key : keys) {
            //获取jedis连接所有的key
            Map<String, String> values = jedis.hgetAll(key);
            if (values != null && values.size() > 0) {
                boolean delete = false;
                long now = System.currentTimeMillis();
                for (Map.Entry<String, String> entry : values.entrySet()) {
                    URL url = URL.valueOf(entry.getKey());
                    if (url.getParameter(Constants.DYNAMIC_KEY, true)) {
                        long expire = Long.parseLong(entry.getValue());
                        //如果key的过期时间早于当前时间，说明过期了。
                        if (expire < now) {
                            jedis.hdel(key, entry.getKey());
                            delete = true;
                            if (logger.isWarnEnabled()) {
                                logger.warn("Delete expired key: " + key + " -> value: " + entry.getKey() + ", expire: " + new Date(expire) + ", now: " + new Date(now));
                            }
                        }
                    }
                }
                if (delete) {
                    //广播通知取消注册哪个Key。
                    jedis.publish(key, Constants.UNREGISTER);
                }
            }
        }
    }
}

2.2.3 Redis注册

(1)org.apache.dubbo.registry.redis.RedisRegistry.doRegister(URL url)

public void doRegister(URL url) {
    // /dubbo/interface/providers(or consumers or configurations or routes)
    String key = toCategoryPath(url);
    //URL
    String value = url.toFullString();
    //计算过期时间
    String expire = String.valueOf(System.currentTimeMillis() + expirePeriod);
    boolean success = false;
    RpcException exception = null;
    //遍历连接池中的所有节点
    for (Map.Entry<String, JedisPool> entry : jedisPools.entrySet()) {
        JedisPool jedisPool = entry.getValue();
        try {
            Jedis jedis = jedisPool.getResource();
            try {
                //保存键值
                jedis.hset(key, value, expire);
                //发布
                jedis.publish(key, Constants.REGISTER);
                success = true;
                //非replicate模式只需要写入一个节点，否则写入全部节点
                if (!replicate) {
                    break; //  If the server side has synchronized data, just write a single machine
                }
            } finally {
                jedis.close();
            }
        } catch (Throwable t) {
            exception = new RpcException("Failed to register service to redis registry. registry: " + entry.getKey() + ", service: " + url + ", cause: " + t.getMessage(), t);
        }
    }
    if (exception != null) {
        if (success) {
            logger.warn(exception.getMessage(), exception);
        } else {
            throw exception;
        }
    }
}

(2)org.apache.dubbo.registry.redis.RedisRegistry.toCategoryPath(URL url)

private String toCategoryPath(URL url) {
    //toServicePath(url) 得到根节点(默认得到"/dubbo/")和接口名称
    //Constants.PATH_SEPARATOR("/")
    //url.getParameter(Constants.CATEGORY_KEY, Constants.DEFAULT_CATEGORY)默认得到"providers"
    return toServicePath(url) + Constants.PATH_SEPARATOR + url.getParameter(Constants.CATEGORY_KEY, Constants.DEFAULT_CATEGORY);
}

//拼接根节点和接口名称
private String toServicePath(URL url) {
    return root + url.getServiceInterface();
}

RedisRegistry的构造函数对root进行了赋值：

private final static String DEFAULT_ROOT = "dubbo";

public RedisRegistry(URL url) {
    ....省略N行代码...
    String group = url.getParameter(Constants.GROUP_KEY, DEFAULT_ROOT);
    if (!group.startsWith(Constants.PATH_SEPARATOR)) {
        group = Constants.PATH_SEPARATOR + group;
    }
    if (!group.endsWith(Constants.PATH_SEPARATOR)) {
        group = group + Constants.PATH_SEPARATOR;
    }
    this.root = group;
    ....省略N行代码...
}

再来看看org.apache.dubbo.common.URL.getServiceInterface()

public String getServiceInterface() {
    return getParameter(Constants.INTERFACE_KEY, path);
}

public String getParameter(String key, String defaultValue) {
    String value = getParameter(key);
    if (value == null || value.length() == 0) {
        return defaultValue;
    }
    return value;
}

public String getParameter(String key) {
    String value = parameters.get(key);
    if (value == null || value.length() == 0) {
        value = parameters.get(Constants.DEFAULT_KEY_PREFIX + key);
    }
    return value;
}

在org.apache.dubbo.common.Constants类中定义了常量：

public final static String PATH_SEPARATOR = "/";
public static final String CATEGORY_KEY = "category";
public static final String DEFAULT_CATEGORY = PROVIDERS_CATEGORY;
public static final String PROVIDERS_CATEGORY = "providers";
public static final String GROUP_KEY = "group";
public static final String DEFAULT_KEY_PREFIX = "default.";
public static final String INTERFACE_KEY = "interface";

2.2.4 Redis订阅

首次订阅时，会创建一个内部线程类Notifier，在启动Notifier时异步订阅通道，同时主线程一次性拉取注册中心的所有事务信息。Notifier订阅的通道推送事件实现后续注册中心的信息变更。

RedisRegistry的 Notifier线程的run()方法部分代码如下：

if (service.endsWith(Constants.ANY_VALUE)) {
    //如果以*结尾
    if (!first) {
        //如果订阅过，获取全部key,更新本地缓存
        first = false;
        Set<String> keys = jedis.keys(service);
        if (keys != null && !keys.isEmpty()) {
            for (String s : keys) {
                doNotify(jedis, s);
            }
        }
        resetSkip();//重置失败计数器
    }
    //订阅
    jedis.psubscribe(new NotifySub(jedisPool), service);
} else {
    if (!first) {
        first = false;
        doNotify(jedis, service);
        resetSkip();
    }
    jedis.psubscribe(new NotifySub(jedisPool), service + Constants.PATH_SEPARATOR + Constants.ANY_VALUE); //订阅指定类别
}

2.3 Simple

基于内存的默认实现。标准RPC服务，不支持集群，可能出现单点故障。

2.4 Multicast

通过广播地址实现互相发现。

3.缓存机制

缓存机制的目的是以空间换时间，如果每次远程调用都要从注册中心拉取一遍可用的远程服务列表，会给网络造成很大的压力。在AbstractRegistry实现了通用的缓存机制。Dubbo在内存存储一份，保存在properties对象中，在磁盘文件保存一份，放在file对象中。

//本地磁盘缓存
private final Properties properties = new Properties();
private final ConcurrentMap<URL, Map<String, List<URL>>> notified = new ConcurrentHashMap<URL, Map<String, List<URL>>>();
//本地磁盘缓存文件
private File file;

private void loadProperties() {
    if (file != null && file.exists()) {
        InputStream in = null;
        try {
            //读取磁盘文件
            in = new FileInputStream(file);
            //加载到properties对象
            properties.load(in);
            if (logger.isInfoEnabled()) {
                logger.info("Load registry store file " + file + ", data: " + properties);
            }
        } catch (Throwable e) {
            logger.warn("Failed to load registry store file " + file, e);
        } finally {
            if (in != null) {
                try {
                    in.close();
                } catch (IOException e) {
                    logger.warn(e.getMessage(), e);
                }
            }
        }
    }
}

org.apache.dubbo.registry.support.AbstractRegistry.saveProperties(URL url)

private final boolean syncSaveFile;
if (syncSaveFile) {
    //同步保存
    doSaveProperties(version);
} else {
    //线程池异步保存
    registryCacheExecutor.execute(new SaveProperties(version));
}

4.重试机制

org.apache.dubbo.registry.support.FailBackRegistry添加了retry()方法。
