算是正式开始学习 spring cloud 的项目知识了,大概的知道Springcloud 是由众多的微服务组成的,所以我们现在一个一个的来学习吧。
注册中心,在微服务中算是核心了。所有的服务都会注册到注册中心,请求服务的时候,并不会直接去请求服务地址,而是先通过注册中心再转到目的地址。虽然Eureka 已经停止维护了,但是我们暂时使用起来还是没有问题的。
Eureka 主要有服务注册中心、服务提供者和服务消费。很多时候服务消费者也是服务提供者。所以就 Eureka 而言,分为 Eureka 服务端和Eureka 客户端,服务端就是注册中心,客户端就是服务提供者和消费者。
好了,我们动手搭建一个Eureka 的服务端吧先,服务端有单机模式和集群模式,我们先来单机模式。
更具上篇文章讲的,我们使用maven 模块化开发,我们创建一个父级maven项目,pom.xml 文件内容如下:
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.2.2.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <groupId>cn.quellanan</groupId> <artifactId>SpringCloud</artifactId> <version>1.0.0</version> <packaging>pom</packaging> <properties> <java.version>1.8</java.version> <spring-cloud.version>Hoxton.SR1</spring-cloud.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> <exclusions> <exclusion> <groupId>org.junit.vintage</groupId> <artifactId>junit-vintage-engine</artifactId> </exclusion> </exclusions> </dependency> </dependencies> <dependencyManagement> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-dependencies</artifactId> <version>${spring-cloud.version}</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencyManagement> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> <modules> <module>eureka-server-8000</module> <module>eureka-server-8001</module> <module>eureka-server-8002</module> <module>zlflovemm</module> </modules> </project>
可以看到文件中指定了spring boot 和Spring cloud 等基础依赖的版本,这样保证各个模块版本的一致性。
接下来我们创建一个eureka-server-8000 的子模块。
pom.xml的内容如下:
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>cn.quellanan</groupId> <artifactId>SpringCloud</artifactId> <version>1.0.0</version> </parent> <groupId>com.quellanan.springcloud</groupId> <artifactId>eureka-server-8000</artifactId> <version>1.0.0</version> <name>eureka-server-8000</name> <description>eureka project for Spring Boot</description> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId> </dependency> </dependencies> </project>
可以看到继承了父级pom,额外的增加了 spring-cloud-starter-netflix-eureka-server 的依赖。
在启动类中增加@EnableEurekaServer 注解,表示启用Eureka 服务端。
@SpringBootApplication @EnableEurekaServer public class EurekaServer8000Application { public static void main(String[] args) { SpringApplication.run(EurekaServer8000Application.class, args); } }
配置文件中增加如下配置
spring.application.name=spring-cloud-eureka-server-8000 server.port=8000 #表示是否将自己注册到Eureka Server,默认为true。 eureka.client.register-with-eureka=true # 表示是否从Eureka Server获取注册信息,默认为true。 eureka.client.fetch-registry=true #设置与Eureka Server交互的地址,查询服务和注册服务都需要依赖这个地址。多个地址可使用 , 分隔。 eureka.client.serviceUrl.defaultZone=http://localhost:${server.port}/eureka/

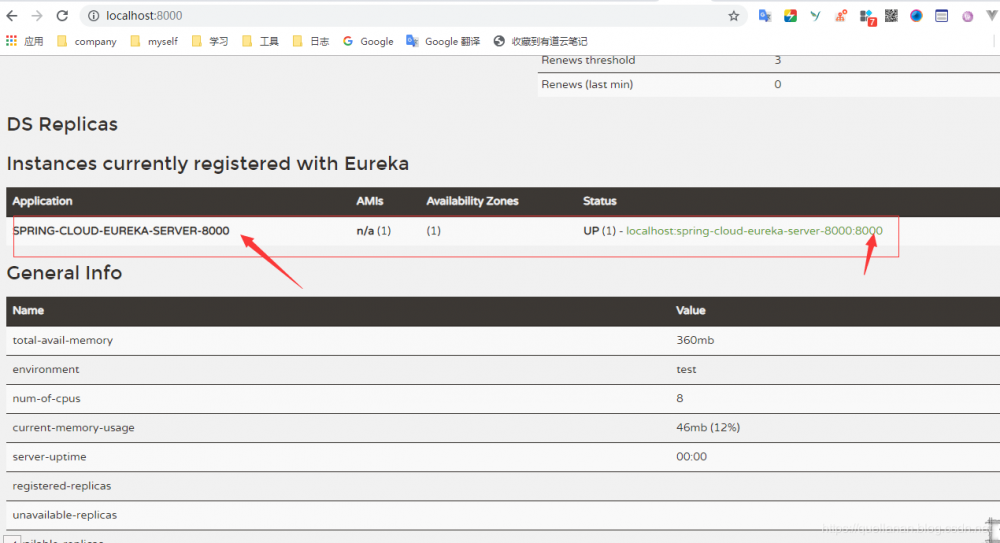

现在我们就可以启动项目看看
可以看到我们将自身注册到了服务中。
前面说了,服务提供者和服务消费者都是客户端,其实就是我们具体的某一业务的项目。所以我们再创建一个子模块。我这里分开吧,我们分别创建服务提供者和服务消费者。
我们创建一个eureka-client-provider的子模块,pom 文件中引入spring-cloud-starter-netflix-eureka-client。
<parent> <groupId>cn.quellanan</groupId> <artifactId>SpringCloud</artifactId> <version>1.0.0</version> </parent> groupId>com.quellanan.springcloud</groupId> <artifactId>eureka-client-provider</artifactId> <version>1.0.0</version> <name>eureka-client-provider</name> <description>eureka-client-provider 服务提供者</description> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId> </dependency> </dependencies>
启动类中加入@EnableEurekaClient注解或者@EnableDiscoveryClient注解都可以。
@SpringBootApplication @EnableDiscoveryClient public class EurekaClientProviderApplication { public static void main(String[] args) { SpringApplication.run(EurekaClientProviderApplication.class, args); } }
application.properties 中增加如下配置
server.port=9000 #服务名,在注册时所用 spring.application.name=eureka-client-provider eureka.client.serviceUrl.defaultZone=http://localhost:8000/eureka/
这里指定的eureka的服务中心的地址为8000。如上配置就可以将服务注册到注册中心啦。
我们在写一个测试接口。
创建一个IndexController 类,内容如下:
@RestController public class HelloController { @RequestMapping("/hello") public String hello(){ return "hello world "; } }
我们一样的创建一个 eureka-client-consumer的模块。pom文件如下:
<parent> <groupId>cn.quellanan</groupId> <artifactId>SpringCloud</artifactId> <version>1.0.0</version> </parent> <groupId>com.quellanan.springcloud</groupId> <artifactId>eureka-client-consumer</artifactId> <version>1.0.0</version> <name>eureka-client-consumer</name> <description>eureka-client-consumer 服务消费者</description> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-openfeign</artifactId> </dependency> </dependencies>
相对于服务提供者,我们增加了Feign 依赖,主要用来发现服务和实现客户端负载均衡,我们这里用来发现服务就可以了。
在启动类中@EnableDiscoveryClient 用来发现服务,并注入RestTemplate 的实例bean 用来对服务提供的接口进行调用。@LoadBalanced 是开启客户端负载均衡的,最开始我没有加这个注解,但是发现不加的话,服务消费者就不能通过服务名来获取可用的服务提供者的实例。所以这里大家可以试验一下。
@EnableDiscoveryClient @SpringBootApplication public class EurekaClientConsumerApplication { @Bean @LoadBalanced public RestTemplate restTemplate(){ return new RestTemplate(); } public static void main(String[] args) { SpringApplication.run(EurekaClientConsumerApplication.class, args); } }
我们接下写一个接口,调用服务消费者,我们创建一个IndexController,内容如下:
@RestController public class IndexController { private static final String applicationName = "eureka-client-provider"; @Autowired private RestTemplate restTemplate; @RequestMapping("/index") public String getHello(){ String url = "http://"+ applicationName +"/hello"; return restTemplate.getForObject(url,String.class); } }
这里我们可以看到applicationName 就是服务提供者的服务名。实际中,一种类型的服务可能有好几台服务器,可能物理地址和ip不一样,但是保证他们的服务名一样就可以了,这样服务消费者就可以通过服务名获取可用的列表,再通过复杂均衡策略选择其中一个实例访问。
最后我们在application中加上如下配置:
server.port=9001 #服务名,在注册时所用 spring.application.name=eureka-client-consumer eureka.client.serviceUrl.defaultZone=http://localhost:8000/eureka/

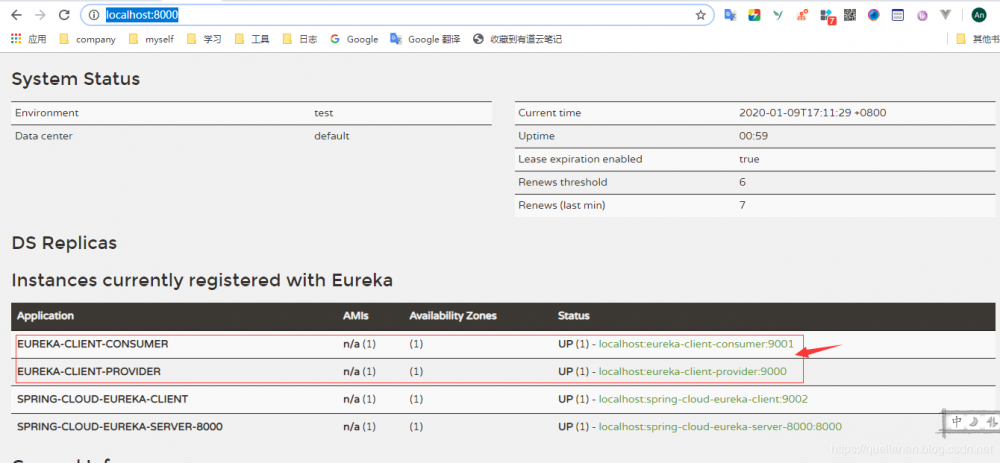

现在我们启动注册中心和客户端这两个项目来看下。启动后,我们输入
http://localhost:8000
可以发现我们的客户端已经注册到注册中心啦。服务提供者和服务消费者都已经注册到了注册中心啦。我们再来调接口试试。我们输入如下:

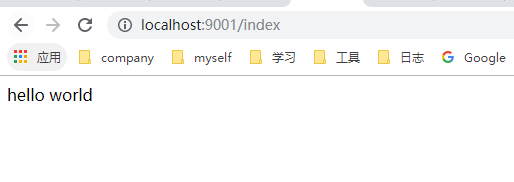

http://localhost:9001/index
可以看到其实获取了9000服务提供者的接口。这样就实现了服务的注册和发现啦,并实现远程调用。
上面我们我们搭建的注册中心只是单机模式,只有一个Eureka 服务端,单实际应用中注册中心其实是尤为重要的,所以就需要搭建集群环境,其实Eureka 对集群模式是天然的支持的,我们搭建也非常简单。
为什么这么说呢,我们前面可以看到只要配置了eureka.client.serviceUrl.defaultZone 就就会被对应的注册中线检测到,所以我们代码完全一样,只需要将eureka.client.serviceUrl.defaultZone相互指引就可以了,就就可以简单的搭建一个高可用的环境。
下面我们来搭建一个,因为我们就一台服务器,所以就用不同的端口,其实代码完全一样的,只是配置文件中配置不一样,我们分别把三个分配置文件贴出来。
8000端口的
spring.application.name=spring-cloud-eureka-server-8000 server.port=8000 #表示是否将自己注册到Eureka Server,默认为true。 eureka.client.register-with-eureka=true # 表示是否从Eureka Server获取注册信息,默认为true。 eureka.client.fetch-registry=true #设置与Eureka Server交互的地址,查询服务和注册服务都需要依赖这个地址。多个地址可使用 , 分隔。 eureka.client.serviceUrl.defaultZone=http://localhost:8001/eureka/,http://localhost:8002/eureka/
8001端口:
spring.application.name=spring-cloud-eureka-server-8001 server.port=8001 #表示是否将自己注册到Eureka Server,默认为true。 eureka.client.register-with-eureka=true # 表示是否从Eureka Server获取注册信息,默认为true。 eureka.client.fetch-registry=true #设置与Eureka Server交互的地址,查询服务和注册服务都需要依赖这个地址。多个地址可使用 , 分隔。 eureka.client.serviceUrl.defaultZone=http://localhost:8000/eureka/,http://localhost:8002/eureka/
8002 端口
spring.application.name=spring-cloud-eureka-server-8002 server.port=8002 #表示是否将自己注册到Eureka Server,默认为true。 eureka.client.register-with-eureka=true # 表示是否从Eureka Server获取注册信息,默认为true。 eureka.client.fetch-registry=true #设置与Eureka Server交互的地址,查询服务和注册服务都需要依赖这个地址。多个地址可使用 , 分隔。 eureka.client.serviceUrl.defaultZone=http://localhost:8000/eureka/,http://localhost:8001/eureka/

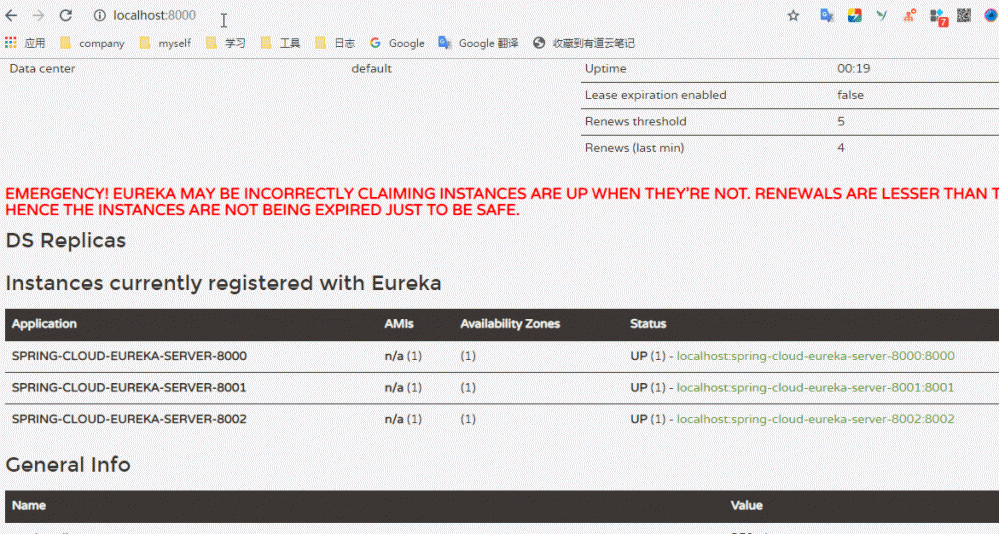

我们现在分别启动这个这三个配置文件,你们可以用profile 来指向,我这为了分明,直接创建了三个模块。启动后,我们分别访问
http://localhost:8000/ http://localhost:8001/ http://localhost:8002/
这里可以看到其实已经相互监控了。我们了解一下这两个配置参数。
#定义服务续约任务的调用时间间隔,默认30s eureka.instance.lease-renewal-interval-in-seconds=30 #定义服务失效的时间默认90s eureka.instance.lease-expiration-duration-in-seconds=90
我们现在再将我们的服务提供者和服务消费者注册进来,但是这里,需要修改的地方也是eureka.client.serviceUrl.defaultZone。将服务注册到集群中。
eureka.client.serviceUrl.defaultZone=http://localhost:8000/eureka/,http://localhost:8001/eureka/,http://localhost:8002/eureka/
然后启动项目可,可以看到注册到了注册中心,并且可以调用服务提供者提供的接口。

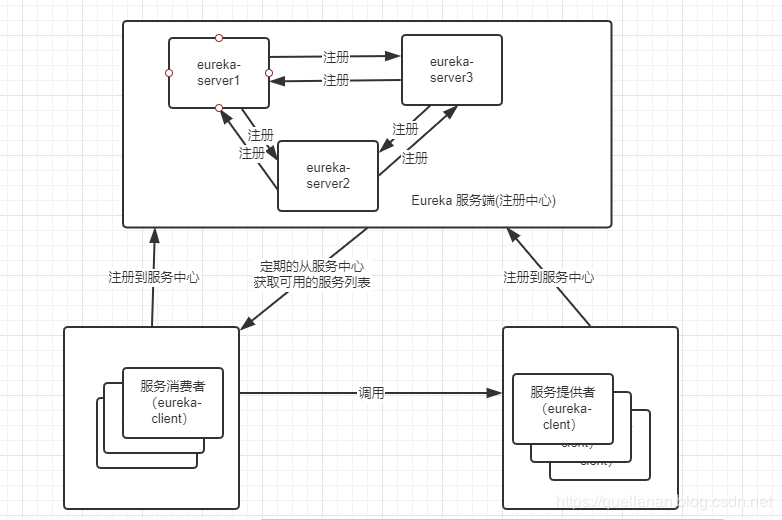

最后画了一张图来说明整个注册中心的架构图。
可以看到注册服务端可以是一个集群。相互注册监控。服务消费者和服务提供者都是服务客户端,都会将服务注册到服务中心,同时这些服务也都可以使是集群或者分布式的。服务提供者会从服务端获取服务提供者可用的服务实例列表,通过负载均衡策略选择其中某一实例进行调用。这个算是Eureka 的总结吧哈哈
好啦,总是是写完了,这篇文章真是是卡了我好几天,有的地方写的不是很好,欢迎大家指点。
代码上传到github:
https://github.com/QuellanAn/SpringCloud
