本文主要分享 Eureka-Client 向 Eureka-Server 获取全量注册信息的过程 。

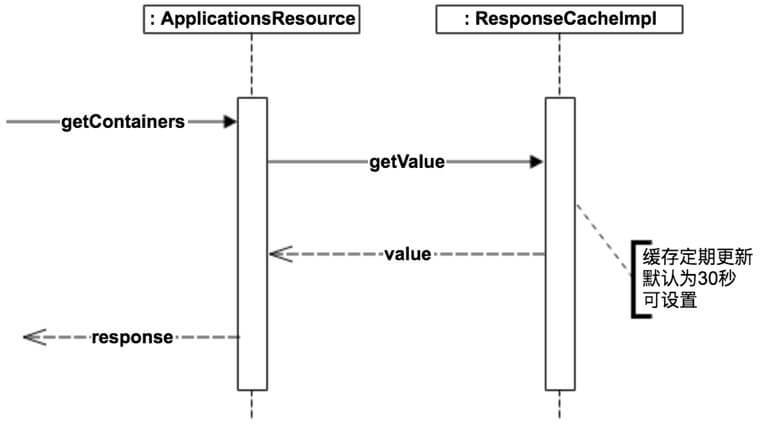

FROM 《深度剖析服务发现组件Netflix Eureka》
Eureka-Client 获取注册信息,分成 全量获取 和 增量获取 。默认配置下,Eureka-Client 启动时,首先执行一次 全量 获取进行 本地缓存 注册信息,而后每 30 秒 增量 获取刷新 本地缓存 ( 非“ 正常 ”情况下会是全量获取 )。
本文重点在于 全量获取 。

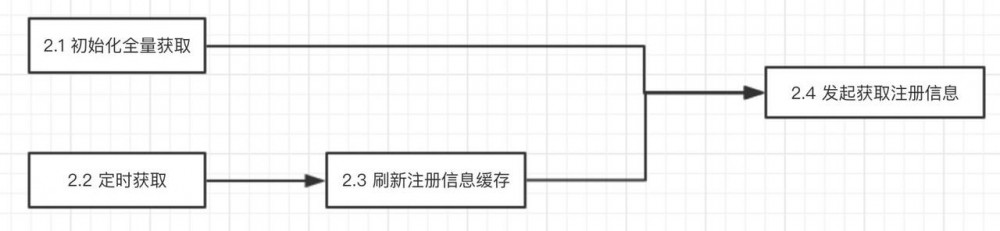

本小节调用关系如下:
Eureka-Client 启动时,首先执行一次 全量 获取进行 本地缓存 注册信息,首先代码如下:
// DiscoveryClient.java /** * Applications 在本地的缓存 */ private final AtomicReference<Applications> localRegionApps = new AtomicReference<Applications>(); DiscoveryClient(ApplicationInfoManager applicationInfoManager, EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs args, Provider<BackupRegistry> backupRegistryProvider) { // ... 省略无关代码 // 【3.2.5】初始化应用集合在本地的缓存 localRegionApps.set(new Applications()); // ... 省略无关代码 // 【3.2.12】从 Eureka-Server 拉取注册信息 if (clientConfig.shouldFetchRegistry() && !fetchRegistry(false)) { fetchRegistryFromBackup(); } // ... 省略无关代码 }
com.netflix.discovery.shared.Applications

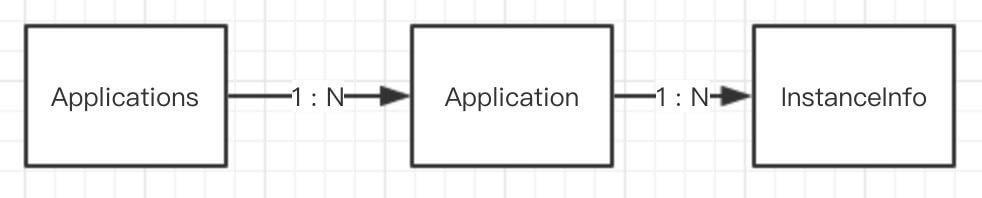

,注册的应用集合。较为容易理解,点击 链接 链接查看带中文注释的类,这里就不啰嗦了。Applications 与 InstanceInfo 类关系如下:
配置 eureka.shouldFetchRegistry = true
,开启从 Eureka-Server 获取注册信息。默认值: true
。
调用 #fetchRegistry(false)
方法,从 Eureka-Server 全量 获取注册信息,在「2.4 发起获取注册信息」详细解析。
Eureka-Client 在初始化过程中,创建 获取注册信息 线程, 固定间隔 向 Eureka-Server 发起 获取注册信息 ( fetch ), 刷新 本地注册信息 缓存 。实现代码如下:
// DiscoveryClient.java DiscoveryClient(ApplicationInfoManager applicationInfoManager, EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs args, Provider<BackupRegistry> backupRegistryProvider) { // ... 省略无关代码 // 【3.2.9】初始化线程池 // default size of 2 - 1 each for heartbeat and cacheRefresh scheduler = Executors.newScheduledThreadPool(2, new ThreadFactoryBuilder() .setNameFormat("DiscoveryClient-%d") .setDaemon(true) .build()); cacheRefreshExecutor = new ThreadPoolExecutor( 1, clientConfig.getCacheRefreshExecutorThreadPoolSize(), 0, TimeUnit.SECONDS, new SynchronousQueue<Runnable>(), new ThreadFactoryBuilder() .setNameFormat("DiscoveryClient-CacheRefreshExecutor-%d") .setDaemon(true) .build() ); // use direct handoff // ... 省略无关代码 // 【3.2.14】初始化定时任务 initScheduledTasks(); // ... 省略无关代码 } private void initScheduledTasks() { // 向 Eureka-Server 心跳(续租)执行器 if (clientConfig.shouldFetchRegistry()) { // registry cache refresh timer int registryFetchIntervalSeconds = clientConfig.getRegistryFetchIntervalSeconds(); int expBackOffBound = clientConfig.getCacheRefreshExecutorExponentialBackOffBound(); scheduler.schedule( new TimedSupervisorTask( "cacheRefresh", scheduler, cacheRefreshExecutor, registryFetchIntervalSeconds, TimeUnit.SECONDS, expBackOffBound, new CacheRefreshThread() ), registryFetchIntervalSeconds, TimeUnit.SECONDS); } // ... 省略无关代码 }
初始化定时任务代码,和 续租 的定时任务代码类似,在 《Eureka 源码解析 —— 应用实例注册发现(二)之续租 》 有详细解析,这里不重复分享。
com.netflix.discovery.DiscoveryClient.CacheRefreshThread
,注册信息缓存刷新任务,实现代码如下:
class CacheRefreshThread implements Runnable { public void run() { refreshRegistry(); } }
#refreshRegistry(false)
方法,刷新注册信息缓存,在「2.3 刷新注册信息缓存」详细解析。 调用 #refreshRegistry(false)
方法,刷新注册信息缓存,实现代码如下:
// DiscoveryClient.java 1: void refreshRegistry() { 2: try { 3: // TODO 芋艿:TODO[0009]:RemoteRegionRegistry 4: boolean isFetchingRemoteRegionRegistries = isFetchingRemoteRegionRegistries(); 5: 6: boolean remoteRegionsModified = false; 7: // This makes sure that a dynamic change to remote regions to fetch is honored. 8: String latestRemoteRegions = clientConfig.fetchRegistryForRemoteRegions(); 9: if (null != latestRemoteRegions) { 10: String currentRemoteRegions = remoteRegionsToFetch.get(); 11: if (!latestRemoteRegions.equals(currentRemoteRegions)) { 12: // Both remoteRegionsToFetch and AzToRegionMapper.regionsToFetch need to be in sync 13: synchronized (instanceRegionChecker.getAzToRegionMapper()) { 14: if (remoteRegionsToFetch.compareAndSet(currentRemoteRegions, latestRemoteRegions)) { 15: String[] remoteRegions = latestRemoteRegions.split(","); 16: remoteRegionsRef.set(remoteRegions); 17: instanceRegionChecker.getAzToRegionMapper().setRegionsToFetch(remoteRegions); 18: remoteRegionsModified = true; 19: } else { 20: logger.info("Remote regions to fetch modified concurrently," + 21: " ignoring change from {} to {}", currentRemoteRegions, latestRemoteRegions); 22: } 23: } 24: } else { 25: // Just refresh mapping to reflect any DNS/Property change 26: instanceRegionChecker.getAzToRegionMapper().refreshMapping(); 27: } 28: } 29: 30: boolean success = fetchRegistry(remoteRegionsModified); 31: if (success) { 32: // 设置 注册信息的应用实例数 33: registrySize = localRegionApps.get().size(); 34: // 设置 最后获取注册信息时间 35: lastSuccessfulRegistryFetchTimestamp = System.currentTimeMillis(); 36: } 37: 38: // 打印日志 39: if (logger.isDebugEnabled()) { 40: StringBuilder allAppsHashCodes = new StringBuilder(); 41: allAppsHashCodes.append("Local region apps hashcode: "); 42: allAppsHashCodes.append(localRegionApps.get().getAppsHashCode()); 43: allAppsHashCodes.append(", is fetching remote regions? "); 44: allAppsHashCodes.append(isFetchingRemoteRegionRegistries); 45: for (Map.Entry<String, Applications> entry : remoteRegionVsApps.entrySet()) { 46: allAppsHashCodes.append(", Remote region: "); 47: allAppsHashCodes.append(entry.getKey()); 48: allAppsHashCodes.append(" , apps hashcode: "); 49: allAppsHashCodes.append(entry.getValue().getAppsHashCode()); 50: } 51: logger.debug("Completed cache refresh task for discovery. All Apps hash code is {} ", 52: allAppsHashCodes.toString()); 53: } 54: } catch (Throwable e) { 55: logger.error("Cannot fetch registry from server", e); 56: } 57: }
第 3 至 28 行 :TODO[0009]:RemoteRegionRegistry
第 30 行 :调用 #fetchRegistry(false)
方法,从 Eureka-Server 获取注册信息,在「2.4 发起获取注册信息」详细解析。
第 31 至 36 行 :获取注册信息成功,设置注册信息的应用实例数,最后获取注册信息时间。变量代码如下:
/** * 注册信息的应用实例数 */ private volatile int registrySize = 0; /** * 最后成功从 Eureka-Server 拉取注册信息时间戳 */ private volatile long lastSuccessfulRegistryFetchTimestamp = -1;
第 38 至 53 行 :打印调试日志。
第 54 至 56 行 :打印 异常 日志。
调用 #fetchRegistry(false)
方法,从 Eureka-Server 获取注册信息( 根据条件判断,可能是 全量 ,也可能是 增量 ),实现代码如下:
1: private boolean fetchRegistry(boolean forceFullRegistryFetch) { 2: Stopwatch tracer = FETCH_REGISTRY_TIMER.start(); 3: 4: try { 5: // 获取 本地缓存的注册的应用实例集合 6: // If the delta is disabled or if it is the first time, get all 7: // applications 8: Applications applications = getApplications(); 9: 10: // 全量获取 11: if (clientConfig.shouldDisableDelta() // 禁用增量获取 12: || (!Strings.isNullOrEmpty(clientConfig.getRegistryRefreshSingleVipAddress())) 13: || forceFullRegistryFetch 14: || (applications == null) // 空 15: || (applications.getRegisteredApplications().size() == 0) // 空 16: || (applications.getVersion() == -1)) //Client application does not have latest library supporting delta 17: { 18: logger.info("Disable delta property : {}", clientConfig.shouldDisableDelta()); 19: logger.info("Single vip registry refresh property : {}", clientConfig.getRegistryRefreshSingleVipAddress()); 20: logger.info("Force full registry fetch : {}", forceFullRegistryFetch); 21: logger.info("Application is null : {}", (applications == null)); 22: logger.info("Registered Applications size is zero : {}", 23: (applications.getRegisteredApplications().size() == 0)); 24: logger.info("Application version is -1: {}", (applications.getVersion() == -1)); 25: // 执行 全量获取 26: getAndStoreFullRegistry(); 27: } else { 28: // 执行 增量获取 29: getAndUpdateDelta(applications); 30: } 31: // 设置 应用集合 hashcode 32: applications.setAppsHashCode(applications.getReconcileHashCode()); 33: // 打印 本地缓存的注册的应用实例数量 34: logTotalInstances(); 35: } catch (Throwable e) { 36: logger.error(PREFIX + appPathIdentifier + " - was unable to refresh its cache! status = " + e.getMessage(), e); 37: return false; 38: } finally { 39: if (tracer != null) { 40: tracer.stop(); 41: } 42: } 43: 44: // Notify about cache refresh before updating the instance remote status 45: onCacheRefreshed(); 46: 47: // Update remote status based on refreshed data held in the cache 48: updateInstanceRemoteStatus(); 49: 50: // registry was fetched successfully, so return true 51: return true; 52: }
第 5 至 8 行 :获取本地缓存的注册的应用实例集合,实现代码如下:
public Applications getApplications() { return localRegionApps.get(); }
第 10 至 26 行 : 全量 获取注册信息。
eureka.disableDelta = true
,禁用 增量 获取注册信息。默认值: false
。 vipAddress
对应的应用实例们的注册信息。 forceFullRegistryFetch
强制 全量 获取注册信息。 #getAndStoreFullRegistry()
方法, 全量 获取注册信息,并设置到本地缓存。下文详细解析。 第 27 至 30 行 : 增量 获取注册信息,并刷新本地缓存,在 《Eureka 源码解析 —— 应用实例注册发现 (七)之增量获取》 详细解析。
第 31 至 32 行 :计算应用集合 hashcode
。该变量用于校验 增量 获取的注册信息和 Eureka-Server 全量 的注册信息是否一致( 完整 ),在 《Eureka 源码解析 —— 应用实例注册发现 (七)之增量获取》 详细解析。
第 33 至 34 行 :打印调试日志,输出本地缓存的注册的应用实例数量。实现代码如下:
private void logTotalInstances() { if (logger.isDebugEnabled()) { int totInstances = 0; for (Application application : getApplications().getRegisteredApplications()) { totInstances += application.getInstancesAsIsFromEureka().size(); } logger.debug("The total number of all instances in the client now is {}", totInstances); } }
第 44 至 45 行 :触发 CacheRefreshedEvent 事件,事件监听器执行。目前 Eureka 未提供默认的该事件监听器。
#onCacheRefreshed()
方法,实现代码如下:
/** * Eureka 事件监听器 */ private final CopyOnWriteArraySet<EurekaEventListener> eventListeners = new CopyOnWriteArraySet<>(); protected void onCacheRefreshed() { fireEvent(new CacheRefreshedEvent()); } protected void fireEvent(final EurekaEvent event) { for (EurekaEventListener listener : eventListeners) { listener.onEvent(event); } }
笔者的YY:你可以实现自定义的事件监听器监听 CacheRefreshedEvent 事件,以达到 持久化 最新的注册信息到存储器( 例如,本地文件 ),通过这样的方式,配合实现 BackupRegistry 接口读取存储器。BackupRegistry 接口调用如下:
// 【3.2.12】从 Eureka-Server 拉取注册信息 if (clientConfig.shouldFetchRegistry() && !fetchRegistry(false)) { fetchRegistryFromBackup(); }
第47 至 48 行 :更新 本地缓存 的当前应用实例在 Eureka-Server 的状态。
1: private volatile InstanceInfo.InstanceStatus lastRemoteInstanceStatus = InstanceInfo.InstanceStatus.UNKNOWN; 2: 3: private synchronized void updateInstanceRemoteStatus() { 4: // Determine this instance's status for this app and set to UNKNOWN if not found 5: InstanceInfo.InstanceStatus currentRemoteInstanceStatus = null; 6: if (instanceInfo.getAppName() != null) { 7: Application app = getApplication(instanceInfo.getAppName()); 8: if (app != null) { 9: InstanceInfo remoteInstanceInfo = app.getByInstanceId(instanceInfo.getId()); 10: if (remoteInstanceInfo != null) { 11: currentRemoteInstanceStatus = remoteInstanceInfo.getStatus(); 12: } 13: } 14: } 15: if (currentRemoteInstanceStatus == null) { 16: currentRemoteInstanceStatus = InstanceInfo.InstanceStatus.UNKNOWN; 17: } 18: 19: // Notify if status changed 20: if (lastRemoteInstanceStatus != currentRemoteInstanceStatus) { 21: onRemoteStatusChanged(lastRemoteInstanceStatus, currentRemoteInstanceStatus); 22: lastRemoteInstanceStatus = currentRemoteInstanceStatus; 23: } 24: }
第 4 至 14 行 :从注册信息中获取当前应用在 Eureka-Server 的状态。
第 19 至 23 行 :对比 本地缓存 和 最新的 的当前应用实例在 Eureka-Server 的状态,若不同,更新 本地缓存 ( 注意,只更新该缓存变量,不更新本地当前应用实例的状态( instanceInfo.status
) ),触发 StatusChangeEvent 事件,事件监听器执行。目前 Eureka 未提供默认的该事件监听器。 #onRemoteStatusChanged(...)
实现代码如下:
protected void onRemoteStatusChanged(InstanceInfo.InstanceStatus oldStatus, InstanceInfo.InstanceStatus newStatus) { fireEvent(new StatusChangeEvent(oldStatus, newStatus)); }
调用 #getAndStoreFullRegistry()
方法, 全量 获取注册信息,并设置到本地缓存。下实现代码如下:
1: private void getAndStoreFullRegistry() throws Throwable { 2: long currentUpdateGeneration = fetchRegistryGeneration.get(); 3: 4: logger.info("Getting all instance registry info from the eureka server"); 5: 6: // 全量获取注册信息 7: Applications apps = null; 8: EurekaHttpResponse<Applications> httpResponse = clientConfig.getRegistryRefreshSingleVipAddress() == null 9: ? eurekaTransport.queryClient.getApplications(remoteRegionsRef.get()) 10: : eurekaTransport.queryClient.getVip(clientConfig.getRegistryRefreshSingleVipAddress(), remoteRegionsRef.get()); 11: if (httpResponse.getStatusCode() == Status.OK.getStatusCode()) { 12: apps = httpResponse.getEntity(); 13: } 14: logger.info("The response status is {}", httpResponse.getStatusCode()); 15: 16: // 设置到本地缓存 17: if (apps == null) { 18: logger.error("The application is null for some reason. Not storing this information"); 19: } else if (fetchRegistryGeneration.compareAndSet(currentUpdateGeneration, currentUpdateGeneration + 1)) { 20: localRegionApps.set(this.filterAndShuffle(apps)); 21: logger.debug("Got full registry with apps hashcode {}", apps.getAppsHashCode()); 22: } else { 23: logger.warn("Not updating applications as another thread is updating it already"); 24: } 25: }
第 6 至 14 行 : 全量 获取注册信息,实现代码如下:
// AbstractJerseyEurekaHttpClient.java @Override public EurekaHttpResponse<Applications> getApplications(String... regions) { return getApplicationsInternal("apps/", regions); } private EurekaHttpResponse<Applications> getApplicationsInternal(String urlPath, String[] regions) { ClientResponse response = null; String regionsParamValue = null; try { WebResource webResource = jerseyClient.resource(serviceUrl).path(urlPath); if (regions != null && regions.length > 0) { regionsParamValue = StringUtil.join(regions); webResource = webResource.queryParam("regions", regionsParamValue); } Builder requestBuilder = webResource.getRequestBuilder(); addExtraHeaders(requestBuilder); response = requestBuilder.accept(MediaType.APPLICATION_JSON_TYPE).get(ClientResponse.class); // JSON Applications applications = null; if (response.getStatus() == Status.OK.getStatusCode() && response.hasEntity()) { applications = response.getEntity(Applications.class); } return anEurekaHttpResponse(response.getStatus(), Applications.class) .headers(headersOf(response)) .entity(applications) .build(); } finally { if (logger.isDebugEnabled()) { logger.debug("Jersey HTTP GET {}/{}?{}; statusCode={}", serviceUrl, urlPath, regionsParamValue == null ? "" : "regions=" + regionsParamValue, response == null ? "N/A" : response.getStatus() ); } if (response != null) { response.close(); } } }
AbstractJerseyEurekaHttpClient#getApplications(...)
方法,GET 请求 Eureka-Server 的 apps/
接口,参数为 regions
,返回格式为 JSON ,实现 全量获取注册信息 。 第 16 至 24 行 :设置到本地注册信息 缓存 。
#filterAndShuffle(...)
方法,根据配置 eureka.shouldFilterOnlyUpInstances = true
( 默认值 : true
) 过滤只保留状态为开启( UP )的应用实例,并 随机打乱 应用实例顺序。打乱后,实现调用应用服务的随机性。代码比较易懂,点击 链接 查看方法实现。 com.netflix.eureka.resources.ApplicationsResource
,处理 所有 应用的请求操作的 Resource ( Controller )。
接收全量获取请求,映射 ApplicationsResource#getContainers()
方法,实现代码如下:
1: @GET 2: public Response getContainers(@PathParam("version") String version, 3: @HeaderParam(HEADER_ACCEPT) String acceptHeader, 4: @HeaderParam(HEADER_ACCEPT_ENCODING) String acceptEncoding, 5: @HeaderParam(EurekaAccept.HTTP_X_EUREKA_ACCEPT) String eurekaAccept, 6: @Context UriInfo uriInfo, 7: @Nullable @QueryParam("regions") String regionsStr) { 8: // TODO[0009]:RemoteRegionRegistry 9: boolean isRemoteRegionRequested = null != regionsStr && !regionsStr.isEmpty(); 10: String[] regions = null; 11: if (!isRemoteRegionRequested) { 12: EurekaMonitors.GET_ALL.increment(); 13: } else { 14: regions = regionsStr.toLowerCase().split(","); 15: Arrays.sort(regions); // So we don't have different caches for same regions queried in different order. 16: EurekaMonitors.GET_ALL_WITH_REMOTE_REGIONS.increment(); 17: } 18: 19: // 判断是否可以访问 20: // Check if the server allows the access to the registry. The server can 21: // restrict access if it is not 22: // ready to serve traffic depending on various reasons. 23: if (!registry.shouldAllowAccess(isRemoteRegionRequested)) { 24: return Response.status(Status.FORBIDDEN).build(); 25: } 26: 27: // API 版本 28: CurrentRequestVersion.set(Version.toEnum(version)); 29: 30: // 返回数据格式 31: KeyType keyType = Key.KeyType.JSON; 32: String returnMediaType = MediaType.APPLICATION_JSON; 33: if (acceptHeader == null || !acceptHeader.contains(HEADER_JSON_VALUE)) { 34: keyType = Key.KeyType.XML; 35: returnMediaType = MediaType.APPLICATION_XML; 36: } 37: 38: // 响应缓存键( KEY ) 39: Key cacheKey = new Key(Key.EntityType.Application, 40: ResponseCacheImpl.ALL_APPS, 41: keyType, CurrentRequestVersion.get(), EurekaAccept.fromString(eurekaAccept), regions 42: ); 43: 44: // 45: Response response; 46: if (acceptEncoding != null && acceptEncoding.contains(HEADER_GZIP_VALUE)) { 47: response = Response.ok(responseCache.getGZIP(cacheKey)) 48: .header(HEADER_CONTENT_ENCODING, HEADER_GZIP_VALUE) 49: .header(HEADER_CONTENT_TYPE, returnMediaType) 50: .build(); 51: } else { 52: response = Response.ok(responseCache.get(cacheKey)) 53: .build(); 54: } 55: return response; 56: }
第 8 至 17 行 :TODO[0009]:RemoteRegionRegistry
第 19 至 25 行 :Eureka-Server 启动完成,但是未处于就绪( Ready )状态,不接受请求全量应用注册信息的请求,例如,Eureka-Server 启动时,未能从其他 Eureka-Server 集群的节点获取到应用注册信息。
第 27 至 28 行 :设置 API 版本号。 默认 最新 API 版本为 V2。实现代码如下:
public enum Version { V1, V2; public static Version toEnum(String v) { for (Version version : Version.values()) { if (version.name().equalsIgnoreCase(v)) { return version; } } //Defaults to v2 return V2; } }
第 30 至 36 行 :设置返回数据格式,默认 JSON 。
第 38 至 42 行 :创建响应缓存( ResponseCache ) 的键( KEY ),在详细解析。
第 44 至 55 行 :从响应缓存读取 全量 注册信息,在详细解析。
com.netflix.eureka.registry.ResponseCache
,响应缓存 接口 ,接口代码如下:
public interface ResponseCache { String get(Key key); byte[] getGZIP(Key key); void invalidate(String appName, @Nullable String vipAddress, @Nullable String secureVipAddress); AtomicLong getVersionDelta(); AtomicLong getVersionDeltaWithRegions(); }
其中, #getVersionDelta()
和 #getVersionDeltaWithRegions()
已经废弃。这里保留的原因主要是考虑兼容性。判断依据来自如下代码:
// Applications.java @Deprecated public void setVersion(Long version) { this.versionDelta = version; } // AbstractInstanceRegistry.java public Applications getApplicationDeltas() { // ... 省略其它无关代码 apps.setVersion(responseCache.getVersionDelta().get()); // 唯一调用到 ResponseCache#getVersionDelta() 方法的地方 // ... 省略其它无关代码 }
#get()
:获得缓存。
#getGZIP()
:获得缓存,并 GZIP 。
#invalidate()
:过期缓存。
com.netflix.eureka.registry.Key
,缓存键。实现代码如下:
public class Key { public enum KeyType { JSON, XML } /** * An enum to define the entity that is stored in this cache for this key. */ public enum EntityType { Application, VIP, SVIP } /** * 实体名 */ private final String entityName; /** * TODO[0009]:RemoteRegionRegistry */ private final String[] regions; /** * 请求参数类型 */ private final KeyType requestType; /** * 请求 API 版本号 */ private final Version requestVersion; /** * hashKey */ private final String hashKey; /** * 实体类型 * * {@link EntityType} */ private final EntityType entityType; /** * {@link EurekaAccept} */ private final EurekaAccept eurekaAccept; public Key(EntityType entityType, String entityName, KeyType type, Version v, EurekaAccept eurekaAccept, @Nullable String[] regions) { this.regions = regions; this.entityType = entityType; this.entityName = entityName; this.requestType = type; this.requestVersion = v; this.eurekaAccept = eurekaAccept; hashKey = this.entityType + this.entityName + (null != this.regions ? Arrays.toString(this.regions) : "") + requestType.name() + requestVersion.name() + this.eurekaAccept.name(); } public Key(EntityType entityType, String entityName, KeyType type, Version v, EurekaAccept eurekaAccept, @Nullable String[] regions) { this.regions = regions; this.entityType = entityType; this.entityName = entityName; this.requestType = type; this.requestVersion = v; this.eurekaAccept = eurekaAccept; hashKey = this.entityType + this.entityName + (null != this.regions ? Arrays.toString(this.regions) : "") + requestType.name() + requestVersion.name() + this.eurekaAccept.name(); } @Override public int hashCode() { String hashKey = getHashKey(); return hashKey.hashCode(); } @Override public boolean equals(Object other) { if (other instanceof Key) { return getHashKey().equals(((Key) other).getHashKey()); } else { return false; } } }
com.netflix.eureka.registry.ResponseCacheImpl
,响应缓存实现类。

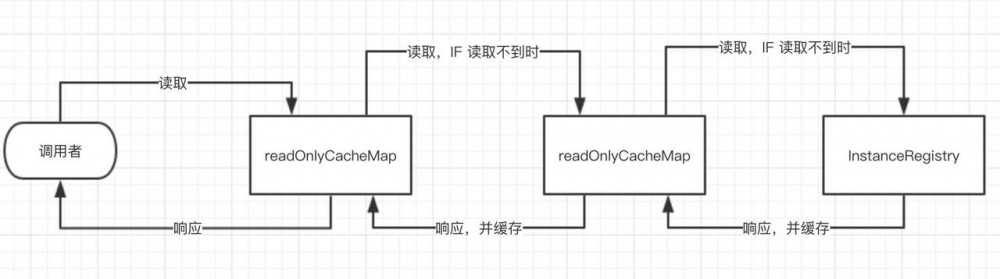

在 ResponseCacheImpl 里,将缓存拆分成两层 :
readOnlyCacheMap
) readWriteCacheMap
) 默认配置下, 缓存读取策略 如下:
readWriteCacheMap
。 readWriteCacheMap
写入一段时间( 可配置 )后自动过期。 readWriteCacheMap
和 readOnlyCacheMap
的缓存值,若不一致,以前者为主。通过这样的方式,实现了 readOnlyCacheMap
的定时过期。 注意:应用实例注册、下线、过期时,不会很快刷新到 readWriteCacheMap
缓存里。默认配置下,最大延迟在 30 秒。
在CAP 的选择上,Eureka 选择了 AP ,不同于 Zookeeper 选择了 CP 。
推荐阅读:
调用 ResponseCacheImpl#get(...)
方法( #getGzip(...)
类似 ),读取缓存,实现代码如下:
1: private final ConcurrentMap<Key, Value> readOnlyCacheMap = new ConcurrentHashMap<Key, Value>(); 2: 3: private final LoadingCache<Key, Value> readWriteCacheMap; 4: 5: public String get(final Key key) { 6: return get(key, shouldUseReadOnlyResponseCache); 7: } 8: 9: String get(final Key key, boolean useReadOnlyCache) { 10: Value payload = getValue(key, useReadOnlyCache); 11: if (payload == null || payload.getPayload().equals(EMPTY_PAYLOAD)) { 12: return null; 13: } else { 14: return payload.getPayload(); 15: } 16: } 17: 18: Value getValue(final Key key, boolean useReadOnlyCache) { 19: Value payload = null; 20: try { 21: if (useReadOnlyCache) { 22: final Value currentPayload = readOnlyCacheMap.get(key); 23: if (currentPayload != null) { 24: payload = currentPayload; 25: } else { 26: payload = readWriteCacheMap.get(key); 27: readOnlyCacheMap.put(key, payload); 28: } 29: } else { 30: payload = readWriteCacheMap.get(key); 31: } 32: } catch (Throwable t) { 33: logger.error("Cannot get value for key :" + key, t); 34: } 35: return payload; 36: }
第 5 至 7 行 :调用 #get(key, useReadOnlyCache)
方法,读取缓存。其中 shouldUseReadOnlyResponseCache
通过配置 eureka.shouldUseReadOnlyResponseCache = true
(默认值 : true
) 开启只读缓存。如果你对数据的一致性有相对高的要求,可以关闭这个开关,当然因为少了 readOnlyCacheMap
,性能会有一定的下降。
第 9 至 16 行 :调用 getValue(key, useReadOnlyCache)
方法,读取缓存。从 readOnlyCacheMap
和 readWriteCacheMap
变量可以看到缓存值的类为 com.netflix.eureka.registry.ResponseCacheImpl.Value
,实现代码如下:
public class Value { /** * 原始值 */ private final String payload; /** * GZIP 压缩后的值 */ private byte[] gzipped; public Value(String payload) { this.payload = payload; if (!EMPTY_PAYLOAD.equals(payload)) { // ... 省略 GZIP 压缩代码 gzipped = bos.toByteArray(); } else { gzipped = null; } } public String getPayload() { return payload; } public byte[] getGzipped() { return gzipped; } }
第 21 至 31 行 :读取缓存。
第 21 至 28 行 :先读取 readOnlyCacheMap
。读取不到,读取 readWriteCacheMap
,并设置到 readOnlyCacheMap
。
第 29 至 31 行 :读取 readWriteCacheMap
。
readWriteCacheMap
实现代码如下:
this.readWriteCacheMap = CacheBuilder.newBuilder().initialCapacity(1000) .expireAfterWrite(serverConfig.getResponseCacheAutoExpirationInSeconds(), TimeUnit.SECONDS) .removalListener(new RemovalListener<Key, Value>() { @Override public void onRemoval(RemovalNotification<Key, Value> notification) { // TODO[0009]:RemoteRegionRegistry Key removedKey = notification.getKey(); if (removedKey.hasRegions()) { Key cloneWithNoRegions = removedKey.cloneWithoutRegions(); regionSpecificKeys.remove(cloneWithNoRegions, removedKey); } } }) .build(new CacheLoader<Key, Value>() { @Override public Value load(Key key) throws Exception { // // TODO[0009]:RemoteRegionRegistry if (key.hasRegions()) { Key cloneWithNoRegions = key.cloneWithoutRegions(); regionSpecificKeys.put(cloneWithNoRegions, key); } Value value = generatePayload(key); return value; } });
readWriteCacheMap #generatePayload(key)
#generatePayload(key)
方法,实现代码如下:
1: private Value generatePayload(Key key) { 2: Stopwatch tracer = null; 3: try { 4: String payload; 5: switch (key.getEntityType()) { 6: case Application: 7: boolean isRemoteRegionRequested = key.hasRegions(); 8: 9: if (ALL_APPS.equals(key.getName())) { 10: if (isRemoteRegionRequested) { // TODO[0009]:RemoteRegionRegistry 11: tracer = serializeAllAppsWithRemoteRegionTimer.start(); 12: payload = getPayLoad(key, registry.getApplicationsFromMultipleRegions(key.getRegions())); 13: } else { 14: tracer = serializeAllAppsTimer.start(); 15: payload = getPayLoad(key, registry.getApplications()); 16: } 17: } else if (ALL_APPS_DELTA.equals(key.getName())) { 18: // ... 省略增量获取相关的代码 19: } else { 20: tracer = serializeOneApptimer.start(); 21: payload = getPayLoad(key, registry.getApplication(key.getName())); 22: } 23: break; 24: // ... 省略部分代码 25: } 26: return new Value(payload); 27: } finally { 28: if (tracer != null) { 29: tracer.stop(); 30: } 31: } 32: }
AbstractInstanceRegistry#getApplications()
方法,获得注册的应用集合。后调用 #getPayLoad()
方法,将注册的应用集合转换成缓存值。 这两个方法代码较多,下面详细解析。 调用 AbstractInstanceRegistry#getApplications()
方法,获得注册的应用集合,实现代码如下:
1: // AbstractInstanceRegistry.java 2: 3: private static final String[] EMPTY_STR_ARRAY = new String[0]; 4: 5: public Applications getApplications() { 6: boolean disableTransparentFallback = serverConfig.disableTransparentFallbackToOtherRegion(); 7: if (disableTransparentFallback) { // TODO[0009]:RemoteRegionRegistry 8: return getApplicationsFromLocalRegionOnly(); 9: } else { 10: return getApplicationsFromAllRemoteRegions(); // Behavior of falling back to remote region can be disabled. 11: } 12: } 13: 14: public Applications getApplicationsFromLocalRegionOnly() { 15: return getApplicationsFromMultipleRegions(EMPTY_STR_ARRAY); 16: }
第 6 至 8 行 :TODO[0009]:RemoteRegionRegistry
第 9 至 16 行 :调用 #getApplicationsFromMultipleRegions(...)
方法,获得注册的应用集合,实现代码如下:
1: public Applications getApplicationsFromMultipleRegions(String[] remoteRegions) { 2: // TODO[0009]:RemoteRegionRegistry 3: boolean includeRemoteRegion = null != remoteRegions && remoteRegions.length != 0; 4: logger.debug("Fetching applications registry with remote regions: {}, Regions argument {}", 5: includeRemoteRegion, Arrays.toString(remoteRegions)); 6: if (includeRemoteRegion) { 7: GET_ALL_WITH_REMOTE_REGIONS_CACHE_MISS.increment(); 8: } else { 9: GET_ALL_CACHE_MISS.increment(); 10: } 11: // 获得获得注册的应用集合 12: Applications apps = new Applications(); 13: apps.setVersion(1L); 14: for (Entry<String, Map<String, Lease<InstanceInfo>>> entry : registry.entrySet()) { 15: Application app = null; 16: 17: if (entry.getValue() != null) { 18: for (Entry<String, Lease<InstanceInfo>> stringLeaseEntry : entry.getValue().entrySet()) { 19: Lease<InstanceInfo> lease = stringLeaseEntry.getValue(); 20: if (app == null) { 21: app = new Application(lease.getHolder().getAppName()); 22: } 23: app.addInstance(decorateInstanceInfo(lease)); 24: } 25: } 26: if (app != null) { 27: apps.addApplication(app); 28: } 29: } 30: // TODO[0009]:RemoteRegionRegistry 31: if (includeRemoteRegion) { 32: for (String remoteRegion : remoteRegions) { 33: RemoteRegionRegistry remoteRegistry = regionNameVSRemoteRegistry.get(remoteRegion); 34: if (null != remoteRegistry) { 35: Applications remoteApps = remoteRegistry.getApplications(); 36: for (Application application : remoteApps.getRegisteredApplications()) { 37: if (shouldFetchFromRemoteRegistry(application.getName(), remoteRegion)) { 38: logger.info("Application {} fetched from the remote region {}", 39: application.getName(), remoteRegion); 40: 41: Application appInstanceTillNow = apps.getRegisteredApplications(application.getName()); 42: if (appInstanceTillNow == null) { 43: appInstanceTillNow = new Application(application.getName()); 44: apps.addApplication(appInstanceTillNow); 45: } 46: for (InstanceInfo instanceInfo : application.getInstances()) { 47: appInstanceTillNow.addInstance(instanceInfo); 48: } 49: } else { 50: logger.debug("Application {} not fetched from the remote region {} as there exists a " 51: + "whitelist and this app is not in the whitelist.", 52: application.getName(), remoteRegion); 53: } 54: } 55: } else { 56: logger.warn("No remote registry available for the remote region {}", remoteRegion); 57: } 58: } 59: } 60: // 设置 应用集合 hashcode 61: apps.setAppsHashCode(apps.getReconcileHashCode()); 62: return apps; 63: }
hashcode
。该变量用于校验 增量 获取的注册信息和 Eureka-Server 全量 的注册信息是否一致( 完整 ),在 《Eureka 源码解析 —— 应用实例注册发现 (七)之增量获取》 详细解析。 调用 #getPayLoad()
方法,将注册的应用集合转换成缓存值,实现代码如下:
/** * Generate pay load with both JSON and XML formats for all applications. */ private String getPayLoad(Key key, Applications apps) { // 获得编码器 EncoderWrapper encoderWrapper = serverCodecs.getEncoder(key.getType(), key.getEurekaAccept()); String result; try { // 编码 result = encoderWrapper.encode(apps); } catch (Exception e) { logger.error("Failed to encode the payload for all apps", e); return ""; } if(logger.isDebugEnabled()) { logger.debug("New application cache entry {} with apps hashcode {}", key.toStringCompact(), apps.getAppsHashCode()); } return result; }
应用实例注册、下线、过期时,调用 ResponseCacheImpl#invalidate()
方法,主动过期读写缓存( readWriteCacheMap
),实现代码如下:
public void invalidate(String appName, @Nullable String vipAddress, @Nullable String secureVipAddress) { for (Key.KeyType type : Key.KeyType.values()) { for (Version v : Version.values()) { invalidate( new Key(Key.EntityType.Application, appName, type, v, EurekaAccept.full), new Key(Key.EntityType.Application, appName, type, v, EurekaAccept.compact), new Key(Key.EntityType.Application, ALL_APPS, type, v, EurekaAccept.full), new Key(Key.EntityType.Application, ALL_APPS, type, v, EurekaAccept.compact), new Key(Key.EntityType.Application, ALL_APPS_DELTA, type, v, EurekaAccept.full), new Key(Key.EntityType.Application, ALL_APPS_DELTA, type, v, EurekaAccept.compact) ); if (null != vipAddress) { invalidate(new Key(Key.EntityType.VIP, vipAddress, type, v, EurekaAccept.full)); } if (null != secureVipAddress) { invalidate(new Key(Key.EntityType.SVIP, secureVipAddress, type, v, EurekaAccept.full)); } } } }
调用 #invalidate(keys)
方法,逐个过期每个缓存键值,实现代码如下:
public void invalidate(Key... keys) { for (Key key : keys) { logger.debug("Invalidating the response cache key : {} {} {} {}, {}", key.getEntityType(), key.getName(), key.getVersion(), key.getType(), key.getEurekaAccept()); // 过期读写缓存 readWriteCacheMap.invalidate(key); // TODO[0009]:RemoteRegionRegistry Collection<Key> keysWithRegions = regionSpecificKeys.get(key); if (null != keysWithRegions && !keysWithRegions.isEmpty()) { for (Key keysWithRegion : keysWithRegions) { logger.debug("Invalidating the response cache key : {} {} {} {} {}", key.getEntityType(), key.getName(), key.getVersion(), key.getType(), key.getEurekaAccept()); readWriteCacheMap.invalidate(keysWithRegion); } } } }
读写缓存( readWriteCacheMap
) 写入后,一段时间自动过期,实现代码如下:
expireAfterWrite(serverConfig.getResponseCacheAutoExpirationInSeconds())
eureka.responseCacheAutoExpirationInSeconds
,设置写入过期时长。默认值 :180 秒。 定时任务对比 readWriteCacheMap
和 readOnlyCacheMap
的缓存值,若不一致,以前者为主。通过这样的方式,实现了 readOnlyCacheMap
的定时过期。实现代码如下:
1: ResponseCacheImpl(EurekaServerConfig serverConfig, ServerCodecs serverCodecs, AbstractInstanceRegistry registry) { 2: // ... 省略无关代码 3: 4: long responseCacheUpdateIntervalMs = serverConfig.getResponseCacheUpdateIntervalMs(); 5: // ... 省略无关代码 6: 7: if (shouldUseReadOnlyResponseCache) { 8: timer.schedule(getCacheUpdateTask(), 9: new Date(((System.currentTimeMillis() / responseCacheUpdateIntervalMs) * responseCacheUpdateIntervalMs) 10: + responseCacheUpdateIntervalMs), 11: responseCacheUpdateIntervalMs); 12: } 13: 14: // ... 省略无关代码 15: } 16: 17: private TimerTask getCacheUpdateTask() { 18: return new TimerTask() { 19: @Override 20: public void run() { 21: logger.debug("Updating the client cache from response cache"); 22: for (Key key : readOnlyCacheMap.keySet()) { // 循环 readOnlyCacheMap 的缓存键 23: if (logger.isDebugEnabled()) { 24: Object[] args = {key.getEntityType(), key.getName(), key.getVersion(), key.getType()}; 25: logger.debug("Updating the client cache from response cache for key : {} {} {} {}", args); 26: } 27: try { 28: CurrentRequestVersion.set(key.getVersion()); 29: Value cacheValue = readWriteCacheMap.get(key); 30: Value currentCacheValue = readOnlyCacheMap.get(key); 31: if (cacheValue != currentCacheValue) { // 不一致时,进行替换 32: readOnlyCacheMap.put(key, cacheValue); 33: } 34: } catch (Throwable th) { 35: logger.error("Error while updating the client cache from response cache for key {}", key.toStringCompact(), th); 36: } 37: } 38: } 39: }; 40: }
eureka.responseCacheUpdateIntervalMs
,设置任务执行频率,默认值 :30 * 1000 毫秒。 readOnlyCacheMap
的缓存键。 为什么不循环 readWriteCacheMap
呢 ? readOnlyCacheMap
的缓存过期依赖 readWriteCacheMap
,因此缓存键会更多。 readWriteCacheMap
和 readOnlyCacheMap
的缓存值,若不一致,以前者为主。通过这样的方式,实现了 readOnlyCacheMap
的定时过期。
